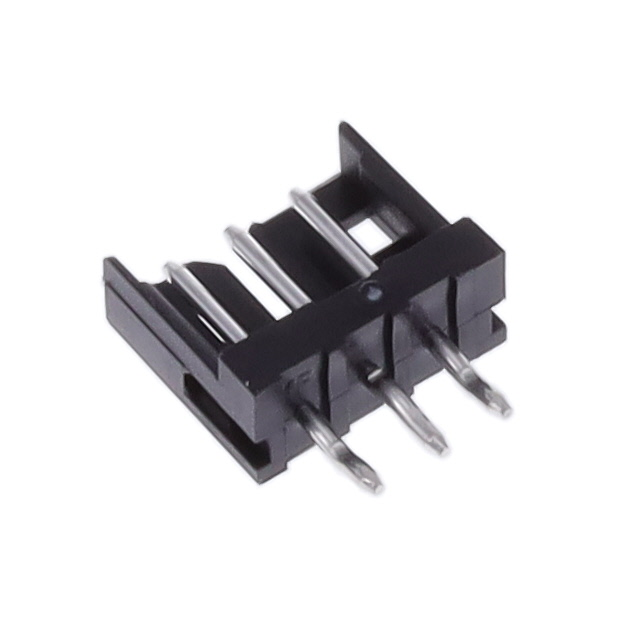

6-292161-3
Or copy the link below:
- Mfr.Part #
- 6-292161-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2MM
- Stock
- 18,721
- In Stock ：
- 18,721
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Contact Finish - Mating :
- Tin
- Insulation Material :
- Polyamide (PA66), Nylon 6/6
- Shape :
- RECTANGULAR
- Number of Positions :
- 3
- Contact Style :
- Straight
- PCB Thickness :
- 800μm
- Current Rating :
- 2A
- Length :
- 7.8mm
- Packaging :
- Bulk
- Contact Gender :
- FEMALE
- Max Operating Temperature :
- 105°C
- Length - Tail :
- 3.2mm
- Polarization Key :
- POLARIZED HOUSING
- Applications :
- GENERAL PURPOSE
- Number of Positions Loaded :
- All
- Current Rating (Amps) :
- Varies by WireGAuge
- IEC Conformance :
- No
- Pbfree Code :
- yes
- Shrouding :
- Shrouded - 3 Wall
- Contact Resistance :
- 20mOhm
- Wire/Cable Type :
- Discrete
- Fastening Type :
- Detent Lock
- DIN Conformance :
- No
- Reliability :
- COMMERCIAL
- Style :
- Board to Cable/Wire
- UL Flammability Code :
- 94V-0
- Material Flammability Rating :
- UL94 V-0
- Contact Shape :
- Square
- Mating Contact Pitch :
- 0.079 inch
- Insulation Color :
- Black
- Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Contact Current Rating :
- 4A
- Min Operating Temperature :
- -40°C
- Color :
- Natural
- Contact Type :
- Male Pin
- PCB Mount Retention :
- With
- Filter Feature :
- No
- Factory Lead Time :
- 12 Weeks
- Plating Thickness :
- 2μm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Connector Type :
- Header
- Contact Length - Mating :
- 0.177 4.50mm
- Contact Material :
- Brass
- Housing Material :
- Nylon
- RoHS Status :
- RoHS Compliant
- Body Depth :
- 0.268 inch
- Number Of PCB Rows :
- 1
- Orientation :
- Vertical
- Width :
- 3.6mm
- Mounting Type :
- Through Hole
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Published :
- 2009
- Height :
- 6.7818mm
- Wire/Cable Gauge :
- 22 AWG
- Voltage - Rated :
- 125VAC
- Series :
- CT
- ELV :
- Compliant
- Mount :
- Through Hole
- Approval Agency :
- CSA
- Number of Conductors :
- ONE
- Contact Length - Post :
- 0.126 3.20mm
- Mating Retention :
- Without
- Number of Rows :
- 1
- Termination :
- Kinked Pin, Solder
- Mating Post Length :
- 4.4958mm
- Sealable :
- No
- Overall Contact Length :
- 0.370 9.40mm
- Mixed Contacts :
- No
- Insulation Height :
- 0.268 6.80mm
- Operating Supply Voltage :
- 125V
- Pitch - Mating :
- 0.079 2.00mm
- Datasheets
- 6-292161-3
CT Series 1-Row Header Kinked Pin, Solder Brass Bulk Through Hole Tin Polyamide (PA66), Nylon 6/6 3-Position Board to Cable/Wire 0.268 6.80mm Height
6-292161-3 Overview
A Header packaging is included.It's mounted Through Hole.We use a Bulk case to package the product.It's from the CT Series.Ideally, it should be used at temperatures below 105°C.Temperatures below -40°C are required for this device.The device could be used for General Purpose.It's mounted by Through Hole.Operating voltage is 125V.
6-292161-3 Features
CT series
6-292161-3 Applications
There are a lot of TE Connectivity AMP Connectors
6-292161-3 Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
