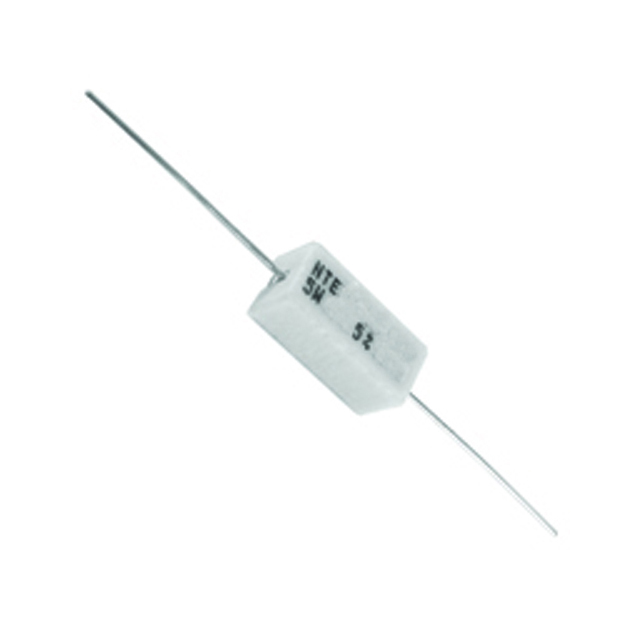

5W315

Manufacturer :

NTE Electronics, Inc.

Product Category :

Through Hole Resistors

Operating Temperature :

-55°C ~ 155°C

Resistance :

15 kOhms

Power Rating :

5 W

Termination :

Axial

Height - Seated (Max) :

-

ECCN Code :

EAR99

Lead Diameter :

0.036

Package Length :

22 mm

Package :

Bag

Failure Rate :

-

Number of Terminations :

2

Max Operating Temperature :

155 °C

Package / Case :

Axial

Mount :

Through Hole

RoHS :

Compliant

Terminal Type :

Axial Leads

Manufacturer :

NTE Electronics

Package Height :

9.65 mm

Composition :

Wirewound

Power (Watts) :

5W

Features :

-

Lead Length :

1.5

Wattage :

5

Series :

-

Size Code :

8738

Subcategory :

Fixed Resistors

Technology :

Wire Wound

Temperature Coefficient :

±300ppm/°C

Supplier Device Package :

Axial

Product Status :

Active

Working Voltage :

200 V

Resistor Type :

FIXED RESISTOR

Number of Terminals :

2

Reach Compliance Code :

Unknown

Package Type :

Axial Lead

Rated Power Dissipation (P) :

5 W

Construction :

Wirewound

Tolerance :

±5%

Size / Dimension :

0.380" Square x 0.866" L (9.65mm x 22.00mm)

Package Width :

9.65 mm

Min Operating Temperature :

-55 °C

HTS Code :

8533.21.00.80

Voltage Rating (DC) :

550 V
