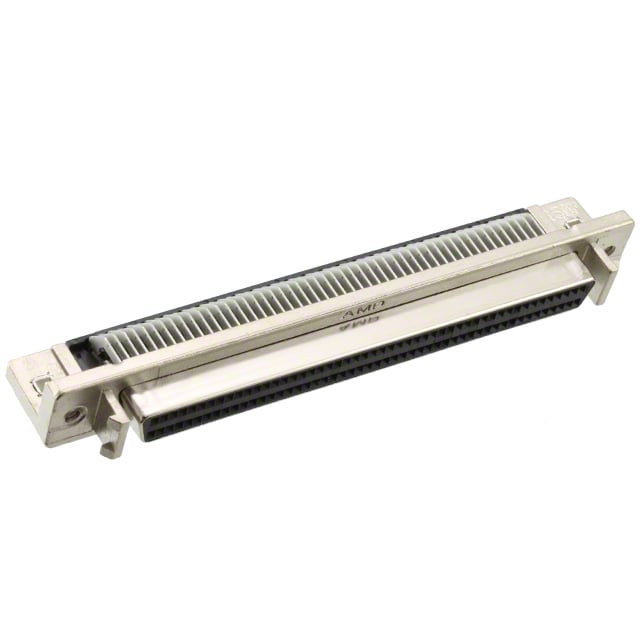

5787082-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

D-Sub Connector Assemblies

Mounting Type :

Board Edge, Through Hole, Right Angle

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Max Supply Voltage (AC) :

250V

Width :

10.31mm

Series :

AMPLIMITE .050 III

Connector Style :

D-Type

Contact Finish :

Gold

Contact Material :

Phosphor Bronze

Feature :

Board Lock, Shielded

Material Flammability Rating :

UL94 V-0

Flange Feature :

Housing/Shell (2-56); Latchblocks

Color :

Black

Pitch :

1.27mm

Insulation :

Insulated

Shell Material :

Steel

Length :

84.2mm

PCB Thickness :

1.57mm

Radiation Hardening :

No

Plating :

Copper, Nickel

Current Rating :

1A

Housing Material :

Thermoplastic

Voltage - Rated :

30V

Orientation :

RIGHT ANGLE

Lead Length :

2.54mm

Current Rating (Amps) :

1A

Number of Contacts :

100

Housing Color :

Black

Hole Diameter :

2.77 mm

Min Operating Temperature :

-55°C

Contact Plating :

Gold

Termination :

Solder

Number of Terminations :

100

Circuit Application :

Signal

Contact Type :

Signal

Max Voltage Rating (AC) :

250V

Factory Lead Time :

11 Weeks

Sealable :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

PCB Mounting Orientation :

RIGHT ANGLE

Shielding :

Shielded

RoHS Status :

RoHS Compliant

PCB Mount Retention :

With

Insulation Material :

Thermoplastic

Gender :

Receptacle

Number of Rows :

2

Shell Size, Connector Layout :

0.050 Pitch x 0.100 Row to Row

Max Operating Temperature :

105°C

Published :

2008

Backset Spacing :

0.146 (3.71mm)

Operating Temperature :

-55°C~105°C

Number of Ports :

1

Row Spacing :

2.54 mm

Shell Material, Finish :

Steel, Nickel Plated

Dielectric Material :

Thermoplastic

Flammability Rating :

UL94 V-0

Packaging :

Tube

Mount :

Through Hole

Mating Connector Lock :

With

Number of Positions :

100

Connector Type :

Receptacle, Female Sockets

Depth :

16.87mm
