5787082-2

Share

Or copy the link below:

Mfr.Part #
5787082-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN D-TYPE RCPT 26POS R/A SLDR
Stock
4
In Stock :
4

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
D-Sub Connector Assemblies
Plating :
Copper, Nickel
Packaging :
Tube
Body Breadth :
0.406 inch
DIN Conformance :
No
Width :
10.31mm
Gender :
FEMALE
Shielding :
Shielded
Lifecycle Status :
ACTIVE (Last Updated: 5 days ago)
PCB Thickness :
1.57mm
Rated Current (Signal) :
1A
Feature :
Board Lock, Shielded
Mating Connector Lock :
With
Contact Material :
Phosphor Bronze
Color :
Black
Connector Style :
D-Type
Orientation :
RIGHT ANGLE
Contact Finish :
Gold
Length :
37.21mm
RoHS Status :
RoHS Compliant
Max Voltage Rating (AC) :
30V
Backset Spacing :
0.146 (3.71mm)
Depth :
16.87mm
Series :
AMPLIMITE .050 III
Operating Temperature :
-55°C~105°C
Lead Free :
Lead Free
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Lead Length :
2.54mm
Additional Feature :
PANEL MOUNTABLE, AMPLIMITE
Number Of PCB Rows :
4
Termination :
Solder
UL Flammability Code :
94V-0
Insulation Material :
Thermoplastic
Material Flammability Rating :
UL94 V-0
Filter Feature :
No
Total Number of Contacts :
26
Connector Type :
Receptacle, Female Sockets
Hole Diameter :
2.77 mm
Shell Material, Finish :
Steel, Nickel Plated
Number of Ports :
1
Current Rating :
1A
Number of Rows :
2
Reliability :
COMMERCIAL
Contact Type :
Signal
Pbfree Code :
yes
Mount :
Through Hole
Published :
2007
Number of Positions :
26
PCB Mounting Orientation :
RIGHT ANGLE
PCB Contact Pattern :
STAGGERED
Sealable :
No
Mixed Contacts :
No
Mounting Type :
Board Edge, Through Hole, Right Angle
Dielectric Withstanding Voltage :
500VAC V
Material :
Metal
Row Spacing :
2.54 mm
ELV :
Compliant
Shell Size, Connector Layout :
0.050 Pitch x 0.100 Row to Row
Flange Feature :
Housing/Shell (2-56); Latchblocks
Factory Lead Time :
11 Weeks
MIL Conformance :
No
Option :
GENERAL PURPOSE
Empty Shell :
No
IEC Conformance :
No
Pitch :
1.27mm
Shell Finish :
Nickel over Copper
Reference Standard :
UL
Shell Material :
Steel
Insulation :
Insulated
Flammability Rating :
UL94 V-0
Datasheets
5787082-2
Introducing D-Sub Connector Assemblies TE Connectivity AMP Connectors 5787082-2 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Board Edge, Through Hole, Right Angle, 5787082-2 pinout, 5787082-2 datasheet PDF, 5787082-2 amp .Beyond D-Sub Connector Assemblies TE Connectivity AMP Connectors 5787082-2 ,we also offer ICD15S13E4GX00LF, L77SDEH09SOL2RM5, A-DF 25 A/KG-T2S, Our vast inventory has you covered. Contact us now for immediate solutions.

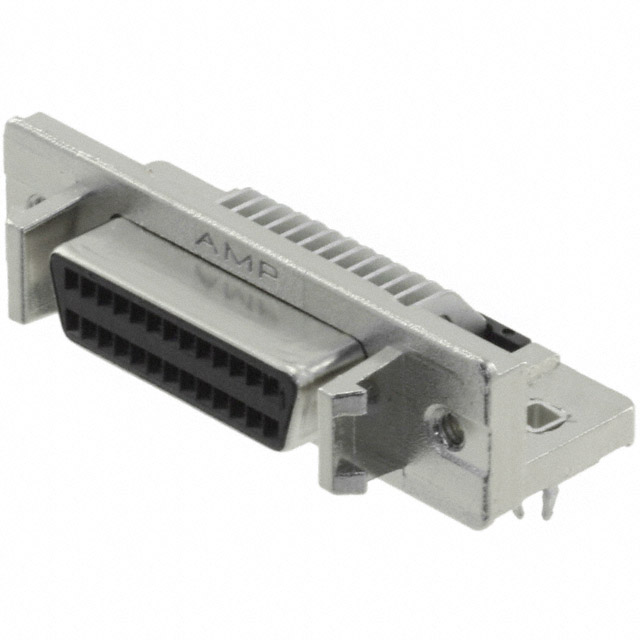

TE Connectivity AMP Connectors 5787082-2


AMPLIMITE .050 III Series D-Type Receptacle, Female Sockets 26-Position Female Signal Solder 0.050 Pitch x 0.100 Row to Row Board Edge, Through Hole, Right Angle Phosphor Bronze Gold Steel, Nickel Plated

5787082-2 Overview


This product is packaged in a Receptacle, Female Sockets box.There is a Board Edge, Through Hole, Right Angle mounting type for the device.This product is packaged in a case marked Tube.Product number AMPLIMITE .050 III belongs to the AMPLIMITE .050 III Series.Further, there are features such as PANEL MOUNTABLE, AMPLIMITE, to name only a few.There are 1 ports available for managing a variety of tasks on this device.In many ways, it is more powerful due to its Board Lock, Shielded feature.There is a Through Hole mount on the part.This device operates at a temperature of -55°C~105°C.
