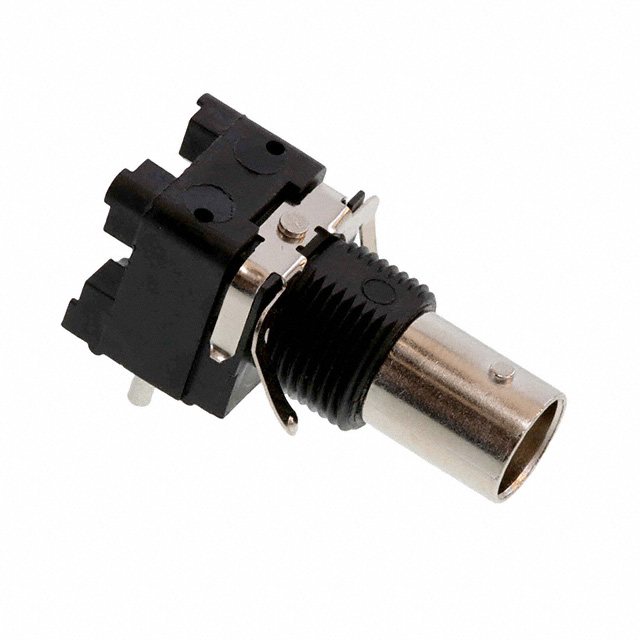

5415085-1

Share

Or copy the link below:

Mfr.Part #
5415085-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN BNC JACK R/A 75 OHM PCB
Stock
26,937
In Stock :
26,937

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Coaxial Connector (RF) Assemblies
Mating Cycles :
500
Body Breadth :
0.625 inch
PCB Mounting Orientation :
RIGHT ANGLE
Insertion Force-Max :
8.896 N
Connector Type :
Jack, Female Socket
Length :
34.93mm
Height :
15.88mm
Feature :
Board Guide, Filter, Isolated
Orientation :
RIGHT ANGLE
Number of Positions :
1
Body Finish :
Nickel
Capacitance :
9.4nF
Contact Style :
COAX
Packaging :
Tube
Mounting Type :
Panel Mount, Through Hole, Right Angle
Published :
2005
IEC Conformance :
No
Gender :
FEMALE
Factory Lead Time :
16 Weeks
DIN Conformance :
No
Sealable :
No
MIL Conformance :
No
Contact Termination :
Solder
ELV :
Compliant
Operating Temperature :
-55°C~85°C
Connector Style :
BNC
REACH SVHC :
Unknown
Option :
GENERAL PURPOSE
Mounting Feature :
Bulkhead - Front Side Nut
Mount :
Panel
Total Number of Contacts :
1
Center Contact Plating :
Gold
Number of Ports :
1
Polarity :
Normal, Standard
Lifecycle Status :
ACTIVE (Last Updated: 4 months ago)
RoHS Status :
RoHS Compliant
Withdrawl Force-Min :
.556 N
Voltage - Rated DC :
1.5kV
Body Material :
Zinc
Frequency :
1GHz
Dielectric Material :
Polymethylpentene (PMP)
Housing Color :
Black, Silver
Insulation Resistance :
5GOhm
Voltage - Rated :
500V
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Length - Tail :
3.43mm
Impedance :
75Ohm
Center Contact Material :
Phosphor Bronze
Fastening Type :
Bayonet Lock
Color :
Black, Silver
Depth :
19.3mm
Reliability :
COMMERCIAL
ECCN Code :
EAR99
Contact Material :
Bronze
Insulation Material :
Polymethylpentene
Datasheets
5415085-1
Introducing Coaxial Connector (RF) Assemblies TE Connectivity AMP Connectors 5415085-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Panel Mount, Through Hole, Right Angle, Operating Temperature:-55°C~85°C, 5415085-1 pinout, 5415085-1 datasheet PDF, 5415085-1 amp .Beyond Coaxial Connector (RF) Assemblies TE Connectivity AMP Connectors 5415085-1 ,we also offer A-1JB, CONUFL001-SMD-T, 0734120114, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 5415085-1


Jack, Female Socket Bayonet Lock 75Ohm Tube BNC Solder 1 Port Polymethylpentene (PMP) -55°C~85°C

5415085-1 Overview


A Jack, Female Socket packaging is included.Panel Mount, Through Hole, Right Angle is the mount type.Tube cases are used to package the product.It has 1 ports for managing stuff.As a result of its Board Guide, Filter, Isolated feature, it possesses a great deal of power.There's a Panel on the part.Operating temperature is -55°C~85°C.It is efficient when used at a frequency of 1GHz.

5415085-1 Features




5415085-1 Applications


There are a lot of TE Connectivity AMP Connectors
5415085-1 Coaxial Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
