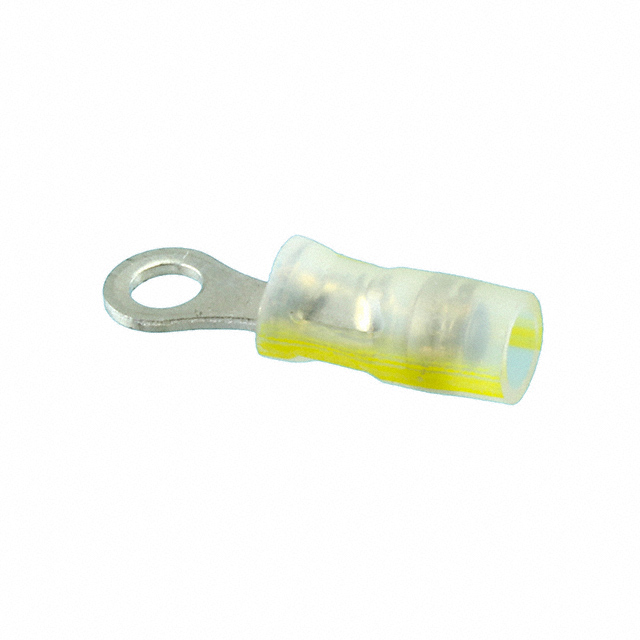

53401-1
Or copy the link below:
- Mfr.Part #
- 53401-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RING CIRC 24-26AWG #4 CRIMP
- Stock
- 623
- In Stock ：
- 623
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Ring Connectors
- Contact Plating :
- Lead, Tin
- Color :
- Natural, Yellow Stripe
- Body Plating :
- Tin
- Width - Outer Edges :
- 0.203 5.16mm
- Lead Free :
- Not Applicable
- RoHS Status :
- Non-RoHS Compliant
- Wire Gauge (Max) :
- 26 AWG
- Thickness :
- 0.027 0.69mm
- Termination :
- Crimp
- Factory Lead Time :
- 21 Weeks
- HTS Code :
- 8536.90.40.00
- Wire Cross Section :
- 0.26 mm2
- Mounting Type :
- Free Hanging (In-Line)
- Plating :
- Lead, Tin
- Stud Diameter :
- 3.0226 mm
- Tongue Thickness :
- 685.8μm
- Length - Overall :
- 0.736 18.69mm
- Terminal Gender :
- FEMALE
- Length :
- 18.7mm
- Wire Gauge :
- 24-26 AWG
- Wire Gauge (Min) :
- 24 AWG
- Feature :
- Radiation Resistant, Serrated Termination
- Mount :
- Free Hanging
- Number of Holes :
- 1
- Material Thickness :
- 736.6μm
- ELV :
- Non-Compliant
- Contact Finish :
- Tin-Lead
- Published :
- 2009
- Insulated Wire Support :
- yes
- Stud Size :
- M2.5
- Insulation :
- Insulated
- Stud/Tab Size :
- 4 Stud
- Terminal and Terminal Block Type :
- RING TERMINAL
- Terminal Type :
- Circular
- Packaging :
- Bulk
- Heavy Duty :
- No
- Material - Insulation :
- Polyvinylidene Fluoride (PVDF)
- Contact Material :
- Copper
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Insulation Diameter :
- 0.032 ~ 0.082 (0.81mm ~ 2.08mm)
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Series :
- PIDG
- Datasheets
- 53401-1
