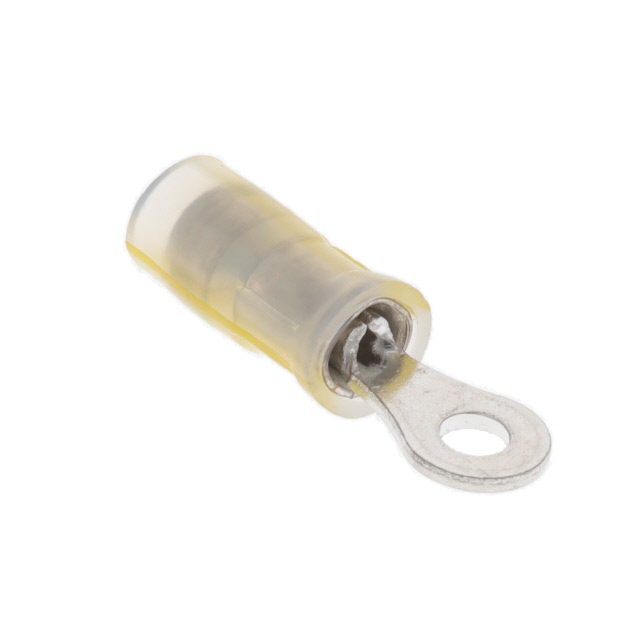

53400-1

Share

Or copy the link below:

Mfr.Part #
53400-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RING CIRC 24-26AWG #2 CRIMP
Stock
4,987
In Stock :
4,987

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Ring Connectors
Insulation :
Insulated
Number of Holes :
1
Contact Material :
Copper
Material - Insulation :
Polyvinylidene Fluoride (PVDF)
Packaging :
Bulk
Termination :
Crimp
Length - Overall :
0.736 18.69mm
Terminal and Terminal Block Type :
RING TERMINAL
Insulated Wire Support :
yes
Stud Size :
M2
Length :
18.7mm
Wire Gauge :
24-26 AWG
Series :
PIDG
RoHS Status :
Non-RoHS Compliant
ECCN Code :
EAR99
Feature :
Serrated Termination
Material Thickness :
690μm
Lifecycle Status :
ACTIVE (Last Updated: 1 day ago)
Diameter - Inside :
2.4 mm
Width - Outer Edges :
0.203 5.16mm
Lead Free :
Not Applicable
Terminal Gender :
FEMALE
ELV :
Non-Compliant
Published :
2009
Terminal Type :
Circular
Stud Diameter :
2.36 mm
Heavy Duty :
No
Tongue Thickness :
685.8μm
Mounting Type :
Free Hanging (In-Line)
Color :
Natural
Factory Lead Time :
20 Weeks
HTS Code :
8536.90.40.00
Stud/Tab Size :
2 Stud
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Thickness :
0.027 0.69mm
Insulation Diameter :
0.032 ~ 0.082 (0.81mm ~ 2.08mm)
Plating :
Lead, Tin
Contact Finish :
Tin-Lead
Datasheets
53400-1
Introducing Ring Connectors TE Connectivity AMP Connectors 53400-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), 53400-1 pinout, 53400-1 datasheet PDF, 53400-1 amp .Beyond Ring Connectors TE Connectivity AMP Connectors 53400-1 ,we also offer PV14-14R-M, 31890, PV18-14RB-3K, Our vast inventory has you covered. Contact us now for immediate solutions.
