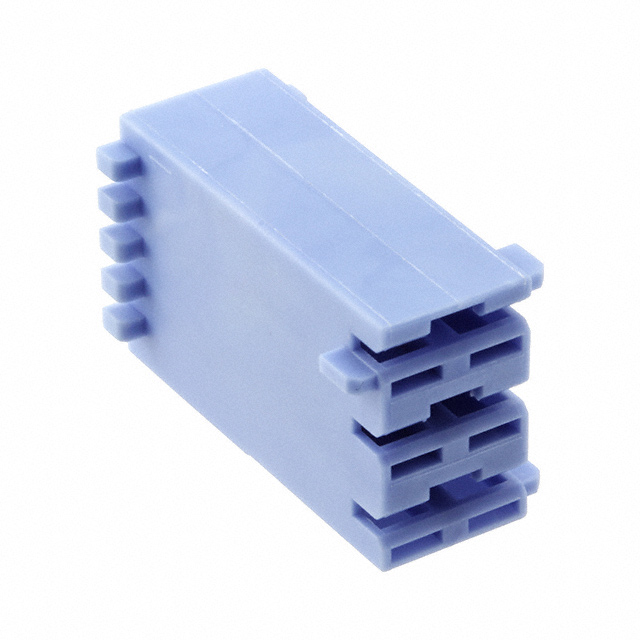

521205-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Housings, Boots

Empty Shell :

No

Dielectric Withstanding Voltage :

800VAC V

Color :

Blue

Sealable :

No

Lifecycle Status :

ACTIVE (Last Updated: 3 days ago)

Packaging :

Bulk

Series :

AMPLIMITE 109

Mixed Contacts :

yes

Mounting Type :

Free Hanging (In-Line)

Note :

Contacts Not Included

ELV :

Compliant

Current Rating :

32A

Number of Rows :

1

Factory Lead Time :

19 Weeks

Reference Standard :

UL

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Depth :

14.78mm

Connector Type :

Receptacle for Female Contacts

Operating Temperature :

-50°C~125°C

Shell Material :

Steel

Moisture Sensitivity Level (MSL) :

Not Applicable

Reliability :

COMMERCIAL

Published :

1997

RoHS Status :

RoHS Compliant

Number of Positions :

5 (Coax or Power)

Circuit Application :

Power

Flange Feature :

Housing/Shell (Unthreaded)

Filter Feature :

No

Termination :

Solder

IEC Conformance :

No

DIN Conformance :

No

Gender :

FEMALE

Shell Finish Thickness :

200μin 5.08μm

Plating :

Zinc

Orientation :

Straight

Mount :

Cable, Free Hanging

Contact Type :

Coax or Power

Number of Conductors :

ONE

Number of Contacts :

5

Lead Free :

Lead Free

Housing Material :

Polyester

Contact Resistance :

6mOhm

Shell Material, Finish :

Steel, Yellow Chromate Plated Zinc

Dielectric Material :

Polyester, Glass Filled

Body Breadth :

0.494 inch

Shell Size, Connector Layout :

3 DB B - 5W5

Hole Diameter :

3.048 mm

MIL Conformance :

No

Length :

53.03mm

Connector Style :

D-Sub, Combo
