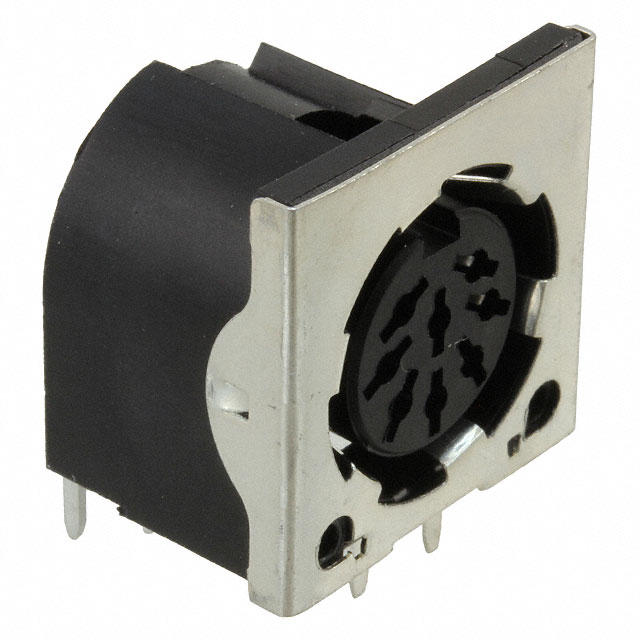

5212034-1

Share

Or copy the link below:

Mfr.Part #
5212034-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN RCPT FMALE DIN 8POS SOLDER
Stock
25,362
In Stock :
25,362

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Circular Connector Assemblies
Mounting Type :
Through Hole, Right Angle
Approval Agency :
CSA
Pbfree Code :
yes
Number of Terminations :
8
Operating Supply Voltage :
250V
Body Material :
Nylon, Plastic
Connector Type :
Receptacle, Female Sockets
Width :
15.75mm
Applications :
Audio
Option :
GENERAL PURPOSE
Fastening Type :
Push-Pull
Published :
1999
RoHS Status :
RoHS Compliant
Orientation :
Keyed
Packaging :
Tray
Factory Lead Time :
11 Weeks
Length - Tail :
3.56mm
Housing Material :
Nylon
Height :
21.844mm
Plating Thickness :
2.54μm
Contact Finish - Mating :
Tin
Insert Material :
Polycarbonate (PC)
Contact Gender :
FEMALE
Material Flammability Rating :
UL94 V-0
MIL Conformance :
No
IEC Conformance :
No
Gender :
Male
Total Number of Contacts :
8
Contact Current Rating :
7.5A
PCB Mounting Orientation :
RIGHT ANGLE
Contact Finish Thickness - Mating :
100.0μin 2.54μm
PCB Thickness :
2.36mm
Operating Temperature :
-55°C~105°C
Length :
20.07mm
Flammability Rating :
UL94 V-0
Lifecycle Status :
ACTIVE (Last Updated: 5 months ago)
ELV :
Compliant
Voltage - Rated :
250VAC
Contact Material :
Brass
DIN Conformance :
yes
EMI Shielded :
yes
Shape :
Circular
Termination :
Solder
Current Rating :
7.5A
Insulation :
Non-Insulated
Lead Free :
Lead Free
Mating Alignment :
With
Sealable :
No
Shielding :
Shielded
Shell Material :
Polyamide (PA), Nylon
REACH SVHC :
Unknown
Color :
Black
Circuit Application :
Signal
Mount :
Panel
Wire/Cable Type :
Discrete
Shell Size - Insert :
DIN 270 Degree
Number of Ports :
1
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Datasheets
5212034-1
Introducing Circular Connector Assemblies TE Connectivity AMP Connectors 5212034-1 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Right Angle, Number of Terminations:8, Operating Temperature:-55°C~105°C, 5212034-1 pinout, 5212034-1 datasheet PDF, 5212034-1 amp .Beyond Circular Connector Assemblies TE Connectivity AMP Connectors 5212034-1 ,we also offer SD-80, PD-40, 1658998-1, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 5212034-1


Receptacle, Female Sockets Polyamide (PA), Nylon Through Hole, Right Angle Solder Tin Tray Keyed Push-Pull

5212034-1 Overview


It comes in Receptacle, Female Sockets packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Tray case is used.The part is mounted by Panel.The device runs in -55°C~105°C Operating Temperature.

5212034-1 Features


8 basic kinds of terminations


5212034-1 Applications


There are a lot of TE Connectivity AMP Connectors
5212034-1 Circular Connectors applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
