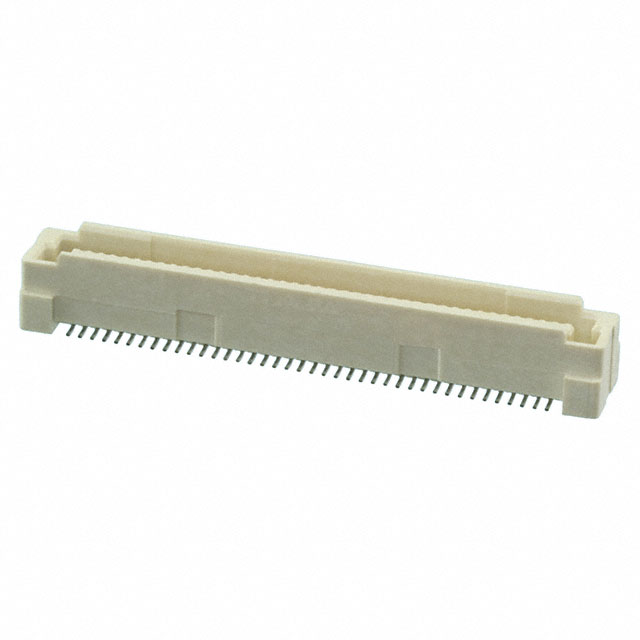

5179029-3

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

IEC Conformance :

No

Flammability Rating :

UL94 V-0

Plating Thickness :

8μin

Voltage - Rated AC :

100V

Operating Supply Voltage :

100V

Stack Height :

18mm

Published :

2006

Current Rating :

500mA

Max Operating Temperature :

125°C

Total Number of Contacts :

80

Insulation Resistance :

2MOhm

Max Voltage Rating (AC) :

100V

Contact Resistance :

30mOhm

Factory Lead Time :

9 Weeks

JESD-609 Code :

e3

Insertion Force-Max :

.8896 N

RoHS Status :

RoHS Compliant

Contact Current Rating :

500mA

Rated Current (Signal) :

0.5A

Mating Alignment :

With

Mixed Contacts :

No

UL Flammability Code :

94V-0

DIN Conformance :

No

Contact Finish Thickness - Mating :

203.2 nm

Number of Conductors :

ONE

Sealable :

No

Number Of PCB Rows :

2

Gender :

Male

Filter Feature :

No

Contact Material :

Brass

Number of Positions :

80

PCB Contact Pattern :

RECTANGULAR

Lifecycle Status :

ACTIVE (Last Updated: 5 days ago)

Connector Type :

Plug, Center Strip Contacts

Housing Material :

Thermoplastic

Contact Finish :

Gold

Reliability :

COMMERCIAL

MIL Conformance :

No

Contact Pattern :

RECTANGULAR

Series :

Free Height (FH)

Contact Style :

BELLOWED TYPE

ELV :

Compliant

Depth :

6mm

Lead Pitch :

800μm

Termination :

SMD/SMT

Contact Finish Thickness :

8.00μin 0.203μm

Durability :

100 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.031 0.80mm

Height :

5.6mm

Mount :

Surface Mount

Voltage - Rated :

100V

Min Operating Temperature :

-40°C

Length :

37.8mm

Number of Rows :

2

Packaging :

Tube

Height Above Board :

0.220 5.59mm

Dielectric Withstanding Voltage :

500VAC V

Stack Height (Mating) :

6mm 10mm 14mm 18mm

REACH SVHC :

No SVHC

Feature :

Board Guide

Preloaded :

yes

Color :

Natural

Polarization Key :

ENDS

Option :

GENERAL PURPOSE

Orientation :

Vertical

Row Spacing :

2.4 mm

Width :

6mm

PCB Mount Retention :

Without

Reference Standard :

UL, CSA

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Mounting Type :

Surface Mount
