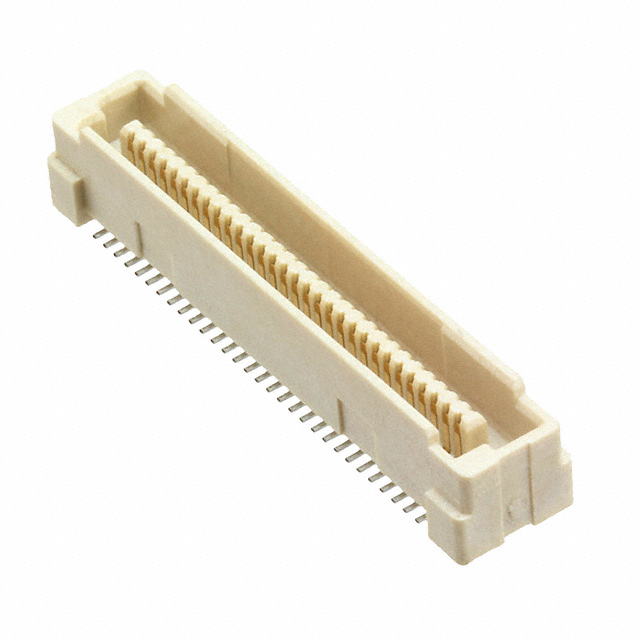

5179029-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Pitch :

0.031 0.80mm

Durability :

100 Cycles

PCB Contact Pattern :

RECTANGULAR

Insulation Resistance :

2MOhm

Sealable :

No

Color :

Natural

Depth :

6mm

Lead Pitch :

800μm

Height :

5.9944mm

Contact Pattern :

RECTANGULAR

Height Above Board :

0.220 5.59mm

Number of Positions :

60

Dielectric Withstanding Voltage :

500VAC V

Contact Finish Thickness :

8.00μin 0.203μm

Contact Finish Thickness - Mating :

200 nm

Contact Finish :

Gold

Current Rating :

500mA

Number of Rows :

2

Mating Alignment :

With

REACH SVHC :

No SVHC

RoHS Status :

RoHS Compliant

Stack Height (Mating) :

6mm 10mm 14mm 18mm

Factory Lead Time :

9 Weeks

Reliability :

COMMERCIAL

Mount :

Surface Mount

Orientation :

Vertical

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Stack Height :

18mm

Rated Current (Signal) :

0.5A

Contact Style :

BELLOWED TYPE

Mounting Type :

Surface Mount

JESD-609 Code :

e3

Published :

2006

Min Operating Temperature :

-40°C

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Preloaded :

yes

Contact Resistance :

30mOhm

Max Operating Temperature :

125°C

Mixed Contacts :

No

Max Voltage Rating (AC) :

100V

Filter Feature :

No

UL Flammability Code :

94V-0

Termination :

SMD/SMT

Row Spacing :

2.4 mm

Polarization Key :

ENDS

Number of Conductors :

ONE

Housing Material :

Polymer

Operating Supply Voltage :

100V

Length :

29.8mm

Series :

Free Height (FH)

Packaging :

Tube

Total Number of Contacts :

60

Contact Current Rating :

500mA

Voltage - Rated AC :

100V

PCB Mount Retention :

Without

MIL Conformance :

No

Voltage - Rated :

100V

Circuit Application :

Signal

DIN Conformance :

No

Contact Material :

Brass

Number Of PCB Rows :

2

Plating Thickness :

8μin

Reference Standard :

UL, CSA

IEC Conformance :

No

Option :

GENERAL PURPOSE

Connector Type :

Plug, Center Strip Contacts

Feature :

Board Guide

Insertion Force-Max :

.8896 N

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Insulation Material :

Thermoplastic

Gender :

Male

Flammability Rating :

UL94 V-0
