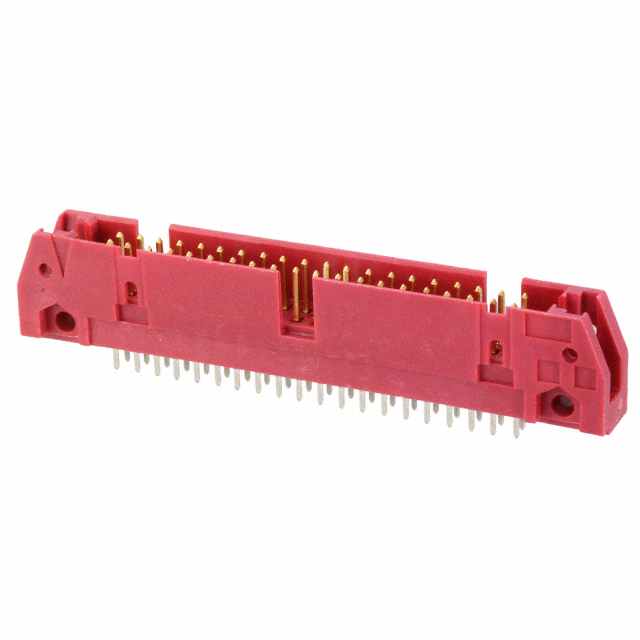

5111008-9

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Fastening Type :

Push-Pull

Depth :

8.63mm

Current Rating (Amps) :

1A per Contact

Contact Shape :

Square

MIL Conformance :

No

Circuit Application :

Signal

Orientation :

Vertical

Contact Finish Thickness - Post :

100.0μin 2.54μm

Lead Length :

2.79mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Polarization Key :

POLARIZED HOUSING

RoHS Status :

RoHS Compliant

Insulation Color :

Red

Contact Length - Mating :

0.240 6.10mm

Insulation Height :

0.549 13.94mm

Contact Length - Post :

0.110 2.79mm

Body Breadth :

0.34 inch

Mount :

Through Hole

Number Of PCB Rows :

2

DIN Conformance :

No

Operating Supply Voltage :

250V

Mounting Type :

Through Hole

Termination :

Solder

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Mating :

30.0μin 0.76μm

UL Flammability Code :

94V-0

Packaging :

Tray

Housing Material :

Thermoplastic

Shrouded End Dimension :

3.81 mm

Reliability :

COMMERCIAL

JESD-609 Code :

e3

Contact Material :

Bronze

Contact Finish - Post :

Tin

Contact Type :

Male Pin

Filter Feature :

No

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

ELV :

Compliant

Radiation Hardening :

No

Mixed Contacts :

No

Feature :

Keying Slot, Mounting Flange

Row Spacing - Mating :

0.100 (2.54mm)

Number of Conductors :

ONE

PCB Contact Pattern :

RECTANGULAR

Pbfree Code :

yes

Contact Plating :

Tin, Gold

Contact Current Rating :

1A

Connector Type :

Header

Series :

AMP-Latch

ECCN Code :

EAR99

Contact Finish - Mating :

Gold or Gold-Palladium

Shrouding :

Shrouded - 4 Wall

IEC Conformance :

No

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT)

Style :

Board to Cable/Wire

Option :

GENERAL PURPOSE

Current Rating :

1A

Number of Rows :

2

Height :

8.636mm

Insulation Resistance :

5GOhm

Max Voltage Rating (AC) :

250V

Plating Thickness :

760 nm

Additional Feature :

LATCHED

Published :

2008

Mating Connector Lock :

Without

Overall Contact Length :

0.639 16.23mm

Factory Lead Time :

23 Weeks

Number of Positions Loaded :

All

Reference Standard :

UL

Length :

70.104mm

Operating Temperature :

-65°C~105°C

Pitch - Mating :

0.100 2.54mm

Dielectric Withstanding Voltage :

1000VAC V

PCB Mount Retention :

With

Number of Positions :

40

Mating Contact Pitch :

0.1 inch
