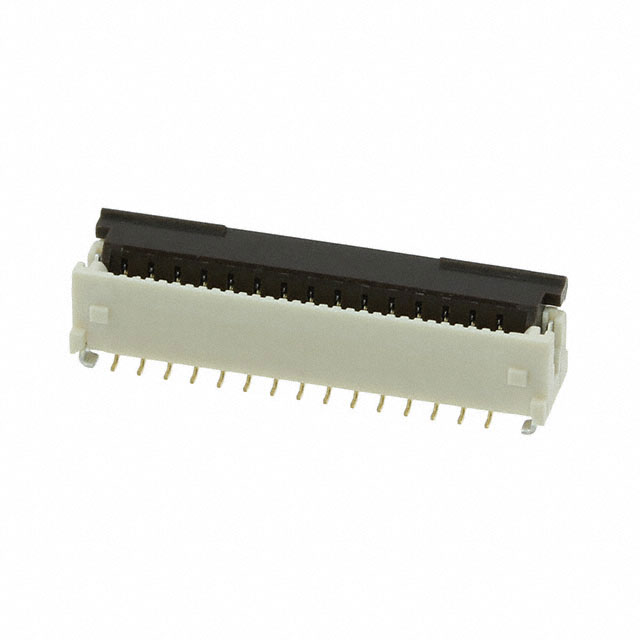

5019513010

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

PCB Contact Row Spacing :

2.8956 mm

Contact Finish Thickness :

3.94μin 0.10μm

Filter Feature :

No

Reliability :

COMMERCIAL

Contact Material :

COPPER ALLOY

Housing Color :

White

RoHS Status :

ROHS3 Compliant

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Actuator Color :

Brown

Mixed Contacts :

No

Voltage - Rated :

50V

Contact Gender :

FEMALE

Body Depth :

0.181 inch

Number of Positions :

30

Cable End Type :

Straight, Tapered

MIL Conformance :

No

Flat Flex Type :

FFC, FPC

Mating Cycles :

20

DIN Conformance :

No

PCB Contact Pattern :

STAGGERED

Connector/Contact Type :

Contacts, Vertical - 1 Sided

Mounting Option 1 :

LOCKING

Contact Finish :

Gold

Reference Standard :

UL

Factory Lead Time :

12 Weeks

Packaging :

Tape and Reel (TR)

Series :

Easy-On 501951

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-25°C~85°C

Pbfree Code :

yes

Termination :

Solder

Height Above Board :

0.159 4.04mm

Actuator Material :

Polyamide (PA9T), Nylon 9T, Glass Filled

Mounting Type :

Surface Mount

Number Of PCB Rows :

2

UL Flammability Code :

94V-0

Published :

2015

Connector Type :

FFC/FPC CONNECTOR

Total Number of Contacts :

30

Pitch :

0.020 0.50mm

Number of Rows :

1

IEC Conformance :

No

Current Rating (Amps) :

0.4A

Body Breadth :

0.177 inch

Material Flammability Rating :

UL94 V-0

Contact Pattern :

RECTANGULAR

FFC, FCB Thickness :

0.30mm

Locking Feature :

Flip Lock
