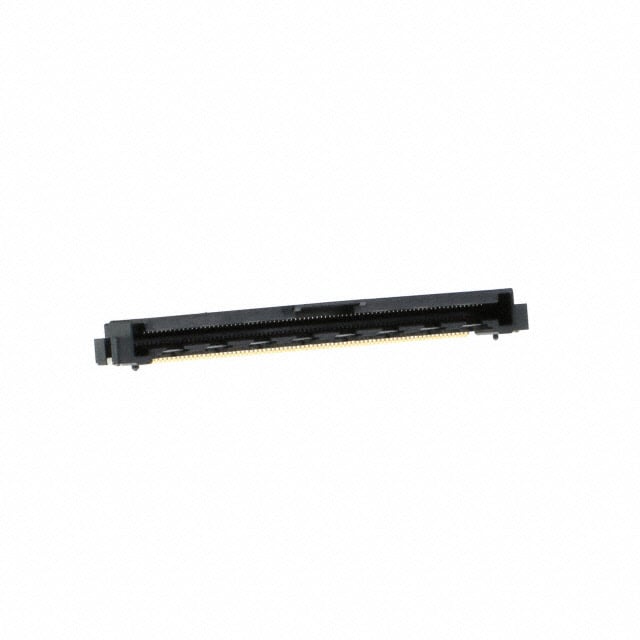

5018648090
Or copy the link below:
- Mfr.Part #
- 5018648090
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FFC BOTTOM 80POS 0.50MM R/A
- Stock
- 5,356
- In Stock ：
- 5,356
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Connector/Contact Type :
- Contacts, Bottom
- Flat Flex Type :
- FFC
- Series :
- Easy-On 501864
- Mating Cycles :
- 20
- Pitch :
- 0.020 0.50mm
- Filter Feature :
- No
- Locking Feature :
- Slide Lock
- Termination :
- Solder
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Number of Rows :
- 1
- Feature :
- Board Guide, Solder Retention
- Contact Material :
- COPPER ALLOY
- Material Flammability Rating :
- UL94 V-0
- Total Number of Contacts :
- 80
- Operating Temperature :
- -40°C~85°C
- Packaging :
- Tape and Reel (TR)
- Body Breadth :
- 0.19 inch
- Factory Lead Time :
- 14 Weeks
- HTS Code :
- 8536.69.40.51
- RoHS Status :
- ROHS3 Compliant
- Body/Shell Style :
- Receptacle
- Number of Positions :
- 80
- Mounting Type :
- Surface Mount, Right Angle
- FFC, FCB Thickness :
- 0.30mm
- Published :
- 2015
- Housing Color :
- Black
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Polarization Key :
- POLARIZED HOUSING
- Option :
- GENERAL PURPOSE
- Current Rating (Amps) :
- 0.5A
- Number of Conductors :
- ONE
- Mixed Contacts :
- No
- Voltage - Rated :
- 50V
- Contact Finish :
- Gold
- Cable End Type :
- Notched
- Contact Gender :
- FEMALE
- Height Above Board :
- 0.191 4.85mm
- Datasheets
- 5018648090
5018648090 Documents
Easy-On 501864 Series FFC Contacts, Bottom Tape & Reel (TR) 0.020 0.50mm Solder 80 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.5A
5018648090 Overview
This device is mounted in the Surface Mount, Right Angle position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the Easy-On 501864 Series.There are a number of advantages to its Board Guide, Solder Retention feature.As a result, the device runs at -40°C~85°C Operating Temperature.
5018648090 Features
Easy-On 501864 series
5018648090 Applications
There are a lot of Molex
5018648090 FFC, FPC (Flat Flexible) Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
