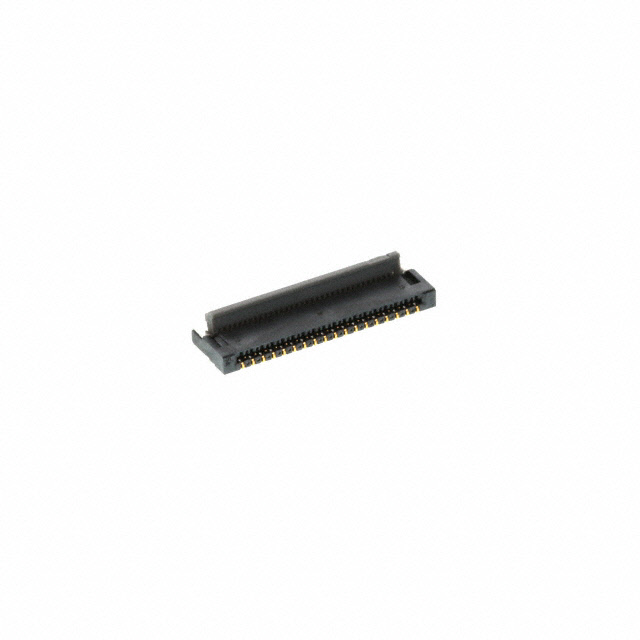

5016163585
Or copy the link below:
- Mfr.Part #
- 5016163585
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC TOP 35POS 0.30MM R/A
- Stock
- 1,157
- In Stock ：
- 1,157
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Housing Color :
- Black
- Contact Plating :
- Gold
- Number of Contacts :
- 35
- Gender :
- Receptacle
- Series :
- Easy-On 501616
- ELV :
- Compliant
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 50V
- Cable End Type :
- Tapered
- Actuator Color :
- Gray
- Material Flammability Rating :
- UL94 V-0
- Number of Positions :
- 35
- FFC, FCB Thickness :
- 0.20mm
- Number of Rows :
- 1
- Packaging :
- Tape and Reel (TR)
- Factory Lead Time :
- 14 Weeks
- Mating Cycles :
- 10
- Operating Temperature :
- -40°C~85°C
- Pitch :
- 0.012 0.30mm
- Current Rating :
- 200mA
- Max Operating Temperature :
- 85°C
- Contact Material :
- COPPER ALLOY
- Contact Finish :
- Gold
- Stackable :
- No
- Connector/Contact Type :
- Contacts, Top
- Contact Location :
- Top
- Max Voltage Rating (DC) :
- 50V
- Length :
- 12.4mm
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2016
- Flammability Rating :
- UL94 V-0
- Number of Circuits :
- 35
- Locking Feature :
- Flip Lock, Backlock
- Current Rating (Amps) :
- 0.2A
- Max Voltage Rating (AC) :
- 50V
- Height Above Board :
- 0.044 1.12mm
- Mounting Type :
- Surface Mount, Right Angle
- Radiation Hardening :
- No
- Orientation :
- RIGHT ANGLE
- Wire/Cable Type :
- Straight
- Termination :
- Solder
- Min Operating Temperature :
- -40°C
- Actuator Material :
- Polymer
- Housing Material :
- Polymer
- Flat Flex Type :
- FPC
- Depth :
- 4.25mm
- Datasheets
- 5016163585
5016163585 Documents
Easy-On 501616 Series FPC Contacts, Top Tape & Reel (TR) 0.012 0.30mm Solder 35 Positions Surface Mount, Right Angle Gold -40°C~85°C 0.2A
5016163585 Overview
Surface Mount, Right Angle indicates that the device is mounted.An Tape & Reel (TR) case is utilized for packaging the product.The product is a part of the Easy-On 501616 Series.Use it below 85°C.A minimum temperature of -40°C must be maintained for the operation of this device.In many ways, Solder Retention, Zero Insertion Force (ZIF) makes it more powerful.It consists of 35 circuits.Operating temperature is set to -40°C~85°C.
5016163585 Features
Easy-On 501616 series
5016163585 Applications
There are a lot of Molex
5016163585 FFC, FPC (Flat Flexible) Connectors applications.
