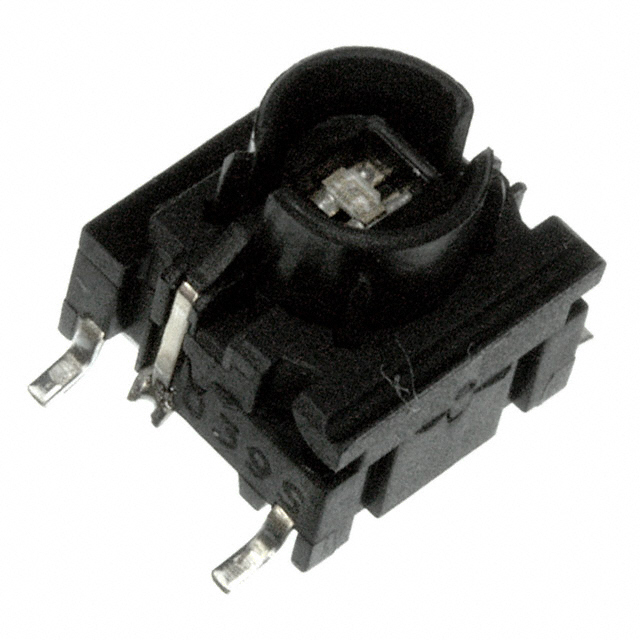

4FSH901

Manufacturer :

MEC switches

Product Category :

Maximum Operating Temperature :

+ 85 C

Actuator Length (mm) :

4(mm)

Illumination Type :

LED

Minimum Operating Temperature :

- 30 C

Voltage Rating (VDC) :

24(V)

Switch Function :

OFF - (ON)

Mechanical Life :

10000000

ECCN :

EAR99

Terminal Type :

Gull wing

Actuator Style :

Round Button

IP Rating :

IP67

Mounting Style :

SMD/SMT

Illumination Color :

Blue

Switch Function Configuration :

N.O.

Height :

10.4 mm

Contact Form :

SPST

Termination Style :

Gull Wing Lead

Tradename :

Illumec

Product Height (mm) :

10.4(mm)

Power Rating :

95 mW

RoHS :

Details

Current Rating :

50 mA

Current Rating (Max) :

0.05(A)

Series :

4F

Itar Registered :

No

Length :

10.3 mm

Color :

Black

Pole Throw Configuration :

SPST

Product Length (mm) :

10.3(mm)

Width :

10.3 mm

Operating Force :

3.5 N

Body Orientation :

Straight

Lamp Type :

LED

Operating Temp Range :

-40C to 160C

Actuator :

Plunger

Product Depth (mm) :

14(mm)
