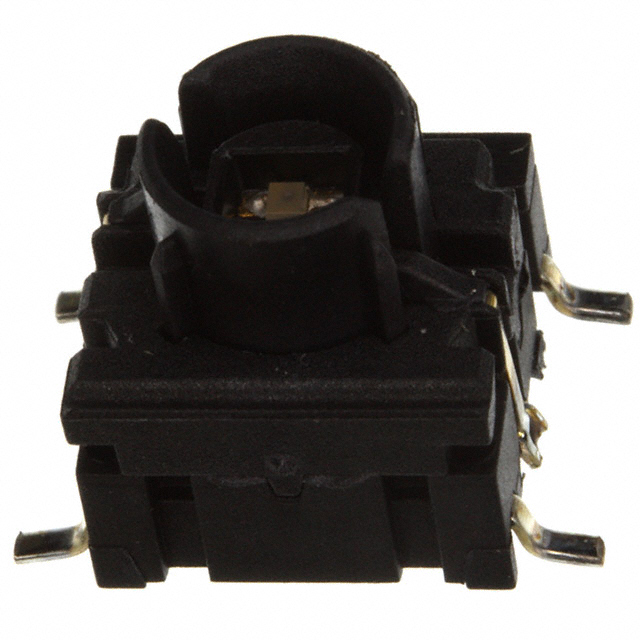

4FSH982

Manufacturer :

MEC switches

Product Category :

Contact Form :

SPST

ECCN :

EAR99

Mechanical Life :

10000000

Actuator Style :

Round Button

Switch Function Configuration :

N.O.

Pole Throw Configuration :

SPST

Tradename :

Illumec

Switch Function :

OFF - (ON)

Illumination Type :

LED

Voltage Rating (VDC) :

24(V)

Maximum Operating Temperature :

+ 85 C

Product Length (mm) :

10.3(mm)

Lamp Type :

LED

Terminal Type :

Gull wing

Minimum Operating Temperature :

- 30 C

IP Rating :

IP67

Product Height (mm) :

10.4(mm)

Actuator Length (mm) :

4(mm)

Power Rating :

65 mW

RoHS :

Details

Mounting Style :

SMD/SMT

Length :

10.3 mm

Body Orientation :

Straight

Current Rating :

50 mA

Operating Temp Range :

-40C to 160C

Termination Style :

Gull Wing Lead

Series :

4F

Height :

10.4 mm

Width :

10.3 mm

Product Depth (mm) :

14(mm)

Illumination Color :

Red

Color :

Black

Current Rating (Max) :

0.05(A)

Actuator :

Plunger

Operating Force :

3.5 N

Itar Registered :

No
