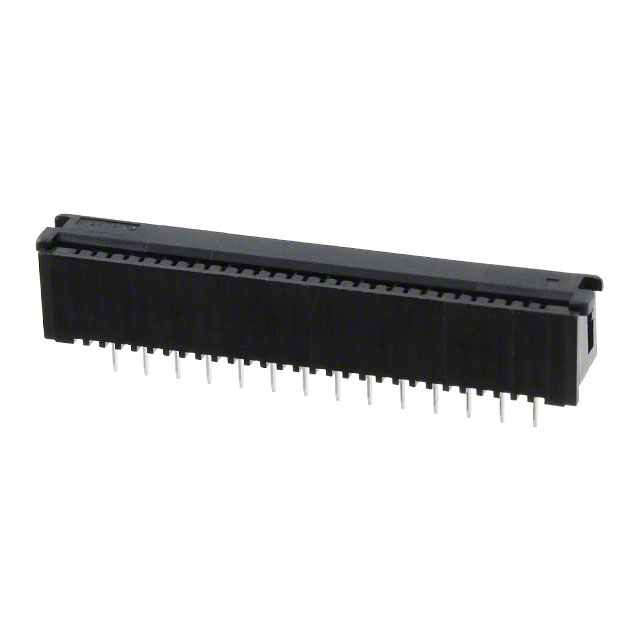

487925-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Feature :

Zero Insertion Force (ZIF)

Reliability :

COMMERCIAL

Orientation :

Vertical

Pitch :

0.100 2.54mm

Insertion Force-Max :

ZIF N

Insulation Resistance :

500MOhm

Durability :

50 Cycles

Option :

GENERAL PURPOSE

Number of Rows :

1

Circuit Application :

Signal

Contact Style :

IDC

Body Breadth :

0.24 inch

MIL Conformance :

No

Mixed Contacts :

No

Rated Current (Signal) :

1A

Reference Standard :

UL

RoHS Status :

RoHS Compliant

Housing Material :

Thermoplastic

Contact Material :

Phosphor Bronze

Additional Feature :

ZIF-LINE

Contact Finish :

Tin

Min Operating Temperature :

-55°C

Operating Supply Voltage :

150V

Pbfree Code :

yes

ELV :

Compliant

Mating Connector Lock :

With

Termination :

Solder

Number of Positions :

14

Factory Lead Time :

13 Weeks

Number Of PCB Rows :

1

Series :

AMPMODU

Contact Pattern :

RECTANGULAR

Locking Feature :

Slide Lock

Plating Thickness :

3.81μm

Length - Tail :

3.94mm

Sealable :

No

IEC Conformance :

No

Packaging :

Tube

Depth :

6.09mm

Length :

42.42mm

ECCN Code :

EAR99

Dielectric Withstanding Voltage :

500VAC V

Contact Finish Thickness :

150.0μin 3.81μm

Housing Color :

Black

Connector/Contact Type :

Contacts, Vertical - 1 Sided

Number of Conductors :

ONE

Mounting Type :

Through Hole

PCB Thickness :

2.36mm

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Cable End Type :

Straight

Published :

1997

Withdrawl Force-Min :

ZIF N

Max Operating Temperature :

105°C

Height Above Board :

0.310 7.87mm

PCB Contact Pattern :

RECTANGULAR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Connector Type :

Connector, Receptacle, Socket

Mount :

Through Hole

DIN Conformance :

No

FFC, FCB Thickness :

0.12mm

Current Rating :

1A

Mating Alignment :

Without

Total Number of Contacts :

14

Flammability Rating :

UL94 V-0

Gender :

Receptacle

Flat Flex Type :

FFC

Filter Feature :

No

UL Flammability Code :

94V-0
