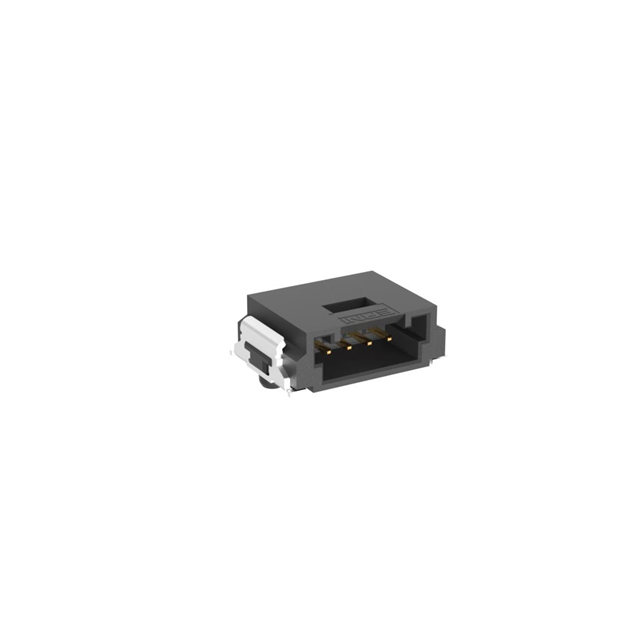

474110

Manufacturer :

TE Connectivity

Product Category :

Headers, Male Pins

Applications :

-

Contact Material :

COPPER ALLOY

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Voltage Rating :

-

Contact Finish Thickness - Post :

157.5µin (4.00µm)

Number of Positions Loaded :

All

Contact Length - Mating :

0.087 (2.21mm)

Contact Type :

Male Pin

Series :

MiniBridge

Base Product Number :

-

Number of Rows :

1

Ingress Protection :

-

Overall Contact Length :

-

Contact Length - Post :

-

Contact Finish - Post :

Tin

Fastening Type :

Latch Holder

Operating Temperature :

-55°C ~ 150°C

Contact Shape :

Square

Insulation Color :

Black

Termination :

Solder

Number of Positions :

4

Pitch - Mating :

0.050 (1.27mm)

Contact Finish Thickness - Mating :

-

Insulation Material :

Liquid Crystal Polymer (LCP)

Features :

Board Guide, Solder Retention

Mated Stacking Heights :

-

Contact Finish - Mating :

Gold

Shrouding :

Shrouded - 4 Wall

Mounting Type :

Surface Mount, Right Angle

Row Spacing - Mating :

-

Product Status :

Active

Insulation Height :

0.137 (3.47mm)

Style :

Board to Cable/Wire

Material Flammability Rating :

UL94 V-0

Connector Type :

Header

Current Rating (Amps) :

5.4A per Contact
