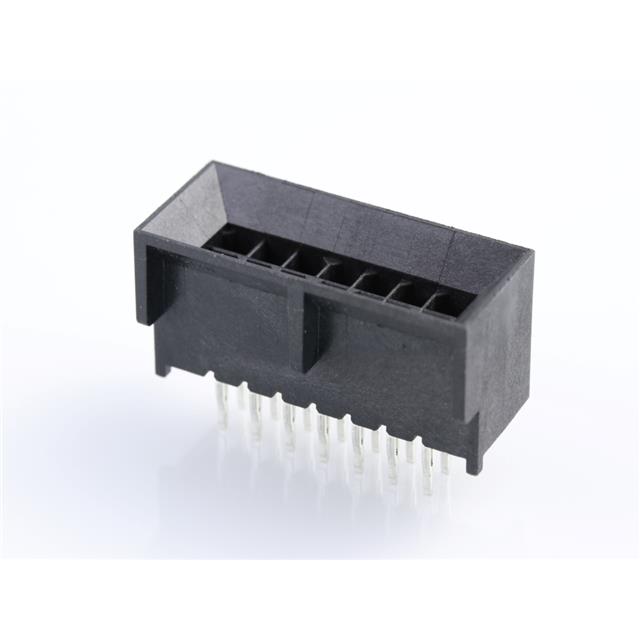

45280-1401

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Housing Color :

Black

Factory Lead Time :

12 Weeks

Current Rating :

8.5 A

Withdrawl Force-Min :

3.614 N

Termination Style :

Solder Pin

Connector Type :

BOARD CONNECTOR

Empty Shell :

No

Flammability :

94V-0

Pbfree Code :

yes

Reach Compliance Code :

Unknown

Mixed Contacts :

No

Body Orientation :

Straight

Type :

Wire to Board

Row Spacing :

3 mm

Reliability :

COMMERCIAL

Series :

*

Product Diameter (mm) :

Not Required(mm)

Polarization Key :

POLARIZED HOUSING

Product Height (mm) :

11.6(mm)

Total Number of Contacts :

14

RoHS :

Details

Number of Ports :

1(Port)

Dielectric Withstanding Voltage :

1500VAC V

Contact Finish Termination :

NOT SPECIFIED

Contact Plating :

Tin

Terminal Pitch :

3 mm

Insertion Force-Max :

8.0064 N

Body Breadth :

0.469 inch

Termination Post Length :

4.9 mm

Number of Rows :

2 Row

PCB Contact Row Spacing :

2.9972 mm

UL Flammability Code :

94V-0

Contact Material :

Alloy

Current Rating (Max) :

8.5/Contact(A)

Pitch (mm) :

3(mm)

Voltage Rating Max :

600V

Option :

GENERAL PURPOSE

Number of Contacts :

14POWER(POS)

Mating Contact Pitch :

0.118 inch

MIL Conformance :

No

Pitch :

3.0000 mm

Insulator Color :

Black

Package :

Box

Termination Method :

Solder

Product Length (mm) :

28(mm)

JESD-609 Code :

e3

Mounting Style :

Through Hole

Mounting :

Through Hole

Contact Type :

-

DIN Conformance :

No

Contact Pattern :

RECTANGULAR

Rated Current (Signal) :

5 A

Base/Housing Material :

Thermoplastic

Mounting Option 2 :

LOCKING

PCB Contact Pattern :

RECTANGULAR

Durability :

30 Cycles

Filter Feature :

No

Mounting Type :

BOARD

Contact Resistance :

10 MΩ

Product Depth (mm) :

11.9(mm)

Flammability Rating :

UL 94 V-0

Contact Style :

SQ PIN-SKT

Subcategory :

Headers and Wire Housings

Gender :

Header

Minimum Operating Temperature :

- 40 C

Product Status :

Active

Plating Thickness :

200u inch

Mating Contact Row Spacing :

0.118 inch

Operating Temperature Max Deg. C :

105C

Termination Type :

Press Fit

Voltage Rating :

600 V

Packaging :

Tray

Body/Shell Style :

Receptacle

Maximum Operating Temperature :

+ 105 C

Orientation :

Vertical

Operating Temperature :

-40 to 105 °C

Product Type :

Headers and Wire Housings

Application :

Board-to-Board

Number of Contact Rows :

2

Operating Temperature Min Deg. C :

-40C

Housing Material :

Nylon

IEC Conformance :

No

Product Category :

Headers and Wire Housings

Number Of PCB Rows :

2

Manufacturer :

Molex

Product :

Headers

Contact Gender :

Pin (Male)

Terminal Length :

0.189 inch

Insulation Resistance :

1000000000 Ω

Shell Material :

Polymer

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Accessory Type :

-

Number of Terminals :

14

Operating Temp Range :

-40C to 105C

Mounting Angle :

Straight

Brand :

Molex

Board Mounting Option :

PEG

Reference Standard :

UL,CSA,TUV

Number of Positions :

14 Position

Tradename :

Micro-Fit 3.0

Additional Feature :

ROHS AND ELV COMPLIANT

Mounting Option 1 :

GUIDE SLOT

Body Depth :

0.457 inch
