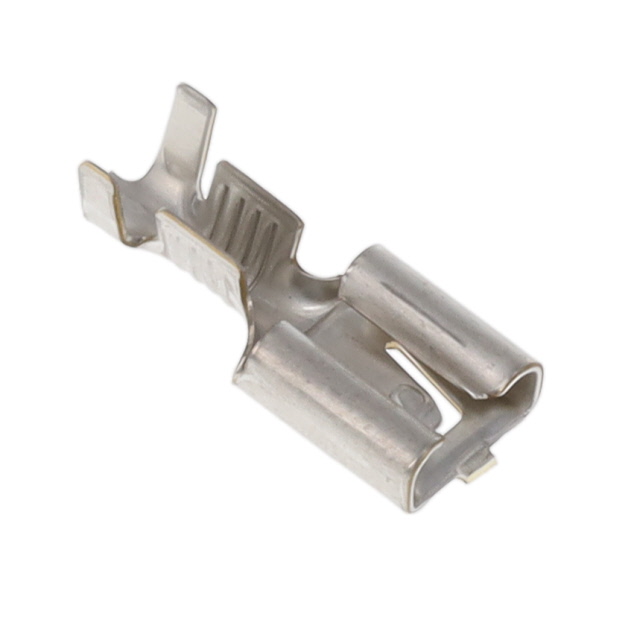

336236-3
Or copy the link below:
- Mfr.Part #
- 336236-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN QC RCPT 13-17AWG 0.250
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Quick Connects, Quick Disconnect Connectors
- Terminal and Terminal Block Type :
- PUSH-ON TERMINAL
- Length - Overall :
- 0.673 17.10mm
- Lead Free :
- Not Applicable
- Wire/Cable Diameter :
- 4.32 mm
- Termination :
- Crimp
- Insulated Wire Support :
- yes
- Mount :
- Cable, Free Hanging
- Min Operating Temperature :
- -55°C
- Factory Lead Time :
- 30 Weeks
- Wire Gauge (Max) :
- 17 AWG
- Tab Thickness :
- 0.032 0.81mm
- Insulation :
- Non-Insulated
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Wire Gauge (Min) :
- 13 AWG
- Mounting Type :
- Free Hanging (In-Line)
- Published :
- 2004
- Contact Finish :
- Tin
- Gender :
- FEMALE
- HTS Code :
- 8536.90.40.00
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Connector Type :
- Connector, PCB, Signal
- ELV :
- Compliant
- Orientation :
- Straight
- Wire Cross Section :
- 2.5 mm2
- Contact Material :
- Brass
- Series :
- Faston
- Terminal Type :
- Standard
- Max Operating Temperature :
- 105°C
- Length - Tab :
- 0.303 7.70mm
- RoHS Status :
- RoHS Compliant
- Wire Gauge :
- 13-17 AWG
- Length :
- 17.1mm
- Sealable :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Wire/Cable Type :
- Discrete
- Insulation Diameter :
- 0.118 ~ 0.169 (3.00mm ~ 4.29mm)
- Packaging :
- Tape and Reel (TR)
- Mating Tab Width :
- 6.35mm
- Width - Tab :
- 0.250 6.35mm
- Datasheets
- 336236-3
336236-3 datasheet pdf and Terminals - Quick Connects, Quick Disconnect Connectors product details from TE Connectivity AMP Connectors stock available at Xinshop
