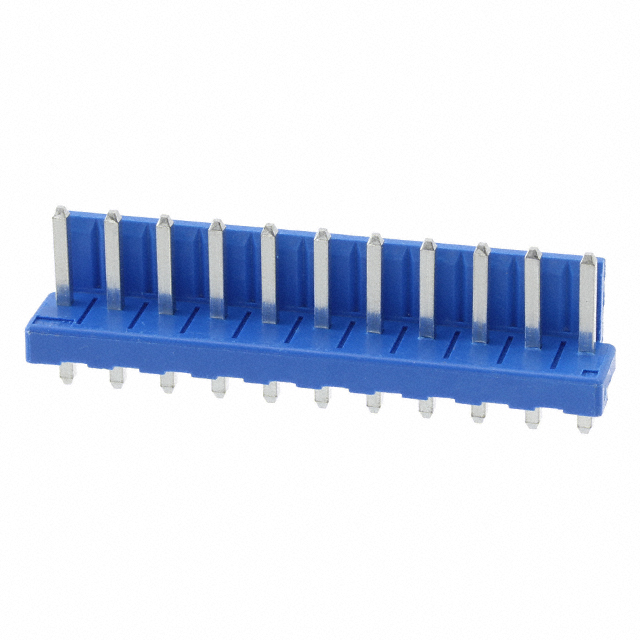

3-1123723-1
Or copy the link below:
- Mfr.Part #
- 3-1123723-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 11POS 3.96MM
- Stock
- 11,963
- In Stock ：
- 11,963
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Contact Shape :
- Square
- Connector Type :
- Header
- Height :
- 8.2mm
- Operating Supply Voltage :
- 250V
- Insulation Material :
- Polybutylene Terephthalate (PBT), Glass Filled
- PCB Thickness :
- 1.6002mm
- Number of Rows :
- 1
- Material :
- Nylon
- Color :
- Blue
- Contact Finish - Post :
- Tin
- PCB Mount Alignment :
- Without
- Applications :
- General Purpose, Industrial, Lighting
- Contact Length - Mating :
- 0.303 7.70mm
- Flammability Rating :
- UL94 V-0
- Number of Positions Loaded :
- All
- Fastening Type :
- Friction Lock
- Plating :
- Tin
- Mount :
- Through Hole
- Current Rating :
- 7.5A
- Contact Type :
- Male Pin
- Contact Length - Post :
- 0.146 3.70mm
- Contact Finish Thickness - Mating :
- 800 nm
- Contact Material :
- Brass
- ELV :
- Compliant
- Length - Tail :
- 3.7mm
- Voltage - Rated :
- 250VAC
- Max Operating Temperature :
- 105°C
- Material Flammability Rating :
- UL94 V-0
- RoHS Status :
- RoHS Compliant
- Published :
- 2005
- Orientation :
- Vertical
- Mating Retention :
- With
- Sealable :
- No
- Radiation Hardening :
- No
- Packaging :
- Bulk
- Factory Lead Time :
- 20 Weeks
- Overall Contact Length :
- 0.567 14.40mm
- Number of Contacts :
- 11
- Operating Temperature :
- -25°C~105°C
- Contact Current Rating :
- 7.5A
- Pitch - Mating :
- 0.156 3.96mm
- Mounting Type :
- Through Hole
- Series :
- Economy Power
- PCB Mounting Orientation :
- Vertical
- Contact Finish - Mating :
- Tin
- Current Rating (Amps) :
- 7.5A
- Width :
- 10.7mm
- Pitch :
- 3.9624mm
- Length :
- 43.4975mm
- Insulation Color :
- Blue
- Termination :
- Solder
- Number of Positions :
- 11
- Insulation Height :
- 0.118 3.00mm
- Mating Post Length :
- 7.7mm
- Style :
- Board to Cable/Wire
- Housing Material :
- PBT
- Shrouding :
- Shrouded - 1 Wall
- Housing Color :
- Blue
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Plating Thickness :
- 800 nm
- PCB Mount Retention :
- Without
- Contact Style :
- Straight
- Min Operating Temperature :
- -25°C
- Contact Plating :
- Tin
- Datasheets
- 3-1123723-1
Economy Power Series 1-Row Header Solder Brass Bulk Through Hole Tin Polybutylene Terephthalate (PBT), Glass Filled 11-Position Board to Cable/Wire 0.118 3.00mm Height
3-1123723-1 Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Economy Power Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -25°C for this device.A possible application of the device would be General Purpose, Industrial, Lighting.In this case, Through Hole mounts the part.The memory's operating supply voltage is 250V.The device is operating at -25°C~105°C Operating Temperature.
3-1123723-1 Features
Economy Power series
3-1123723-1 Applications
There are a lot of TE Connectivity AMP Connectors
3-1123723-1 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
