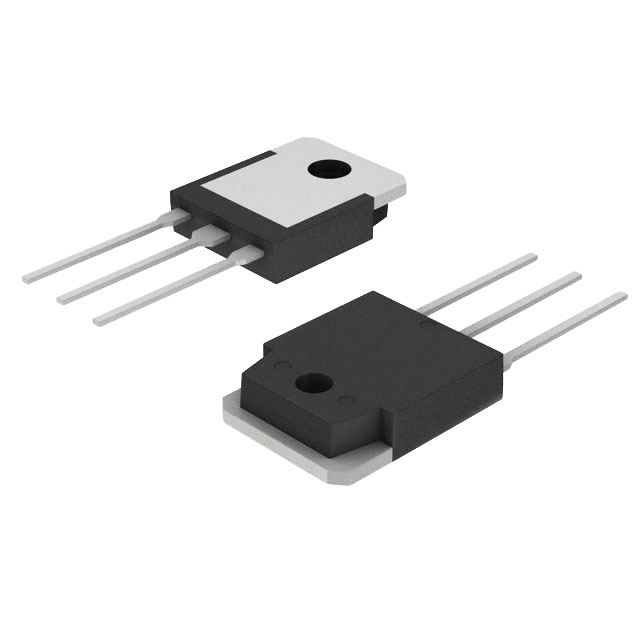

2SA1186
Or copy the link below:
- Mfr.Part #
- 2SA1186
- Manufacturer
- Sanken Electric Co., Ltd.
- Package / Case
- TO-3P-3 Full Pack
- Datasheet
- Download
- Description
- TRANS PNP 150V 10A TO3P
- Stock
- 893
- In Stock ：
- 893
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Sanken Electric Co., Ltd.
- Product Category :
- Transistors - Bipolar (BJT) - Single
- Transistor Application :
- AMPLIFIER
- Frequency - Transition :
- 60MHz
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Configuration :
- Single
- Operating Temperature :
- 150°C TJ
- Published :
- 2007
- Qualification Status :
- Not Qualified
- Transistor Type :
- PNP
- RoHS Status :
- RoHS Compliant
- Vce Saturation (Max) @ Ib, Ic :
- 2V @ 500mA, 5A
- Packaging :
- Tube
- Reach Compliance Code :
- Unknown
- Current - Collector (Ic) (Max) :
- 10A
- DC Current Gain (hFE) (Min) @ Ic, Vce :
- 50 @ 3A 4V
- Transistor Element Material :
- SILICON
- Voltage - Collector Emitter Breakdown (Max) :
- 150V
- Terminal Position :
- Single
- Power - Max :
- 100W
- Pin Count :
- 3
- Current - Collector Cutoff (Max) :
- 100μA ICBO
- ECCN Code :
- EAR99
- Factory Lead Time :
- 24 Weeks
- Supplier Device Package :
- TO-3P
- Transition Frequency :
- 60MHz
- Series :
- --
- JESD-30 Code :
- R-PSFM-T3
- Polarity/Channel Type :
- PNP
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Number of Terminations :
- 3
- Mounting Type :
- Through Hole
- Power Dissipation-Max (Abs) :
- 100W
- Number of Elements :
- 1
- Product Status :
- Obsolete
- Surface Mount :
- No
- Package / Case :
- TO-3P-3 Full Pack
- Pbfree Code :
- yes
- Package :
- Bulk
- Datasheets
- 2SA1186
PNP 150°C TJ 100μA ICBO 1 Elements 3 Terminations SILICON PNP TO-3P-3 Full Pack Tube Through Hole
2SA1186 Overview
As the DC current gain is the ratio of the collector current to the base current, for this device the DC current gain is 50 @ 3A 4V.As a result of vce saturation, Ic reaches its maximum value (saturated), and vce saturation(Max) is 2V @ 500mA, 5A.Parts of this part have transition frequencies of 60MHz.TO-3P is the supplier device package for this product.This device displays a 150V maximum voltage - Collector Emitter Breakdown.
2SA1186 Features
the DC current gain for this device is 50 @ 3A 4V
the vce saturation(Max) is 2V @ 500mA, 5A
a transition frequency of 60MHz
the supplier device package of TO-3P
2SA1186 Applications
There are a lot of Sanken
2SA1186 applications of single BJT transistors.
