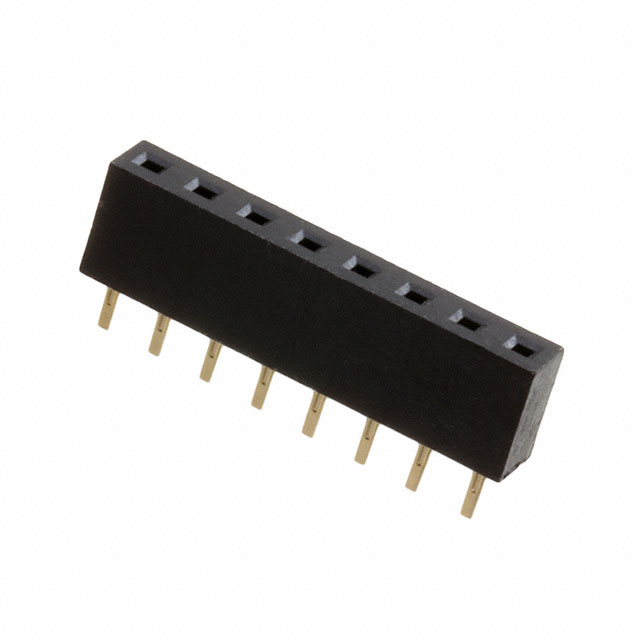

2RS1-08-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

RoHS Status :

ROHS3 Compliant

Mounting Option 1 :

LOCKING

Fastening Type :

Push-Pull

Contact Length - Post :

0.094 2.40mm

Operating Temperature :

-40°C~105°C

JESD-609 Code :

e4

Reliability :

COMMERCIAL

Number of Conductors :

ONE

Contact Type :

Female Socket

Insulation Color :

Black

Contact Resistance :

20mOhm

Packaging :

Tube

Number of Positions Loaded :

All

Polarization Key :

POLARIZED HOUSING

Pitch - Mating :

0.079 2.00mm

Body Length or Diameter :

0.632 inch

Contact Finish Thickness - Mating :

Flash

Contact Material :

Phosphor Bronze

Applications :

GENERAL PURPOSE

Reference Standard :

UL, CSA

Factory Lead Time :

9 Weeks

Body Breadth :

0.094 inch

Insulation Resistance :

5000000000Ohm

Mounting Type :

Through Hole

Insulation Material :

Polybutylene Terephthalate (PBT)

Current Rating (Amps) :

1A

Style :

Board to Board

Connector Type :

Receptacle

Insulation Height :

0.169 4.30mm

PCB Contact Pattern :

RECTANGULAR

Termination :

Solder

Terminal Pitch :

2.0066mm

Voltage - Rated :

250VAC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish - Mating :

Gold

Number of Positions :

8

Number Of PCB Rows :

1

Material Flammability Rating :

UL94 V-0

Mating Contact Pitch :

0.079 inch

Additional Feature :

RoHS Compliant

Length - Termination :

0.094 inch

ECCN Code :

EAR99

Number of Rows :

1

Series :

2RS1

Contact Shape :

Square
