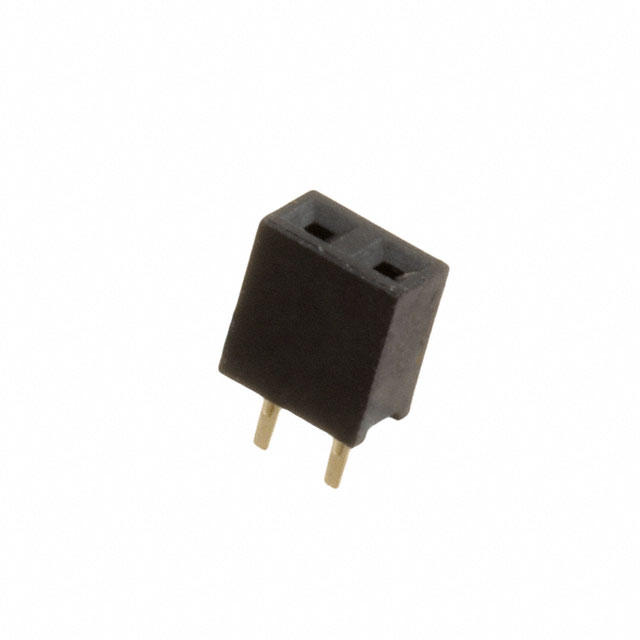

2RS1-02-G

Manufacturer :

Adam Tech

Product Category :

Headers, Receptacles, Female Sockets

Style :

Board to Board

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

1

Fastening Type :

Push-Pull

RoHS Status :

ROHS3 Compliant

Current Rating (Amps) :

1A

Mating Contact Pitch :

0.079 inch

Contact Shape :

Square

Withdrawl Force-Min :

.7784 N

Insulation Height :

0.169 4.30mm

Operating Temperature :

-40°C~105°C

Connector Type :

Receptacle

Applications :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions Loaded :

All

JESD-609 Code :

e4

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Finish - Mating :

Gold

Pitch - Mating :

0.079 2.00mm

Length - Termination :

0.094 inch

Reliability :

COMMERCIAL

Mounting Option 1 :

LOCKING

Termination :

Solder

Mounting Type :

Through Hole

Body Breadth :

0.094 inch

Material Flammability Rating :

UL94 V-0

Packaging :

Tube

Contact Material :

Phosphor Bronze

Voltage - Rated :

250VAC

Insulation Color :

Black

Number of Conductors :

ONE

Insulation Resistance :

5000000000Ohm

Number of Rows :

1

Reference Standard :

UL, CSA

Contact Type :

Female Socket

Series :

2RS1

Contact Length - Post :

0.094 2.40mm

Additional Feature :

RoHS Compliant

Polarization Key :

POLARIZED HOUSING

HTS Code :

8536.69.40.40

Factory Lead Time :

9 Weeks

Number of Positions :

2

ECCN Code :

EAR99

Contact Finish Thickness - Mating :

Flash
