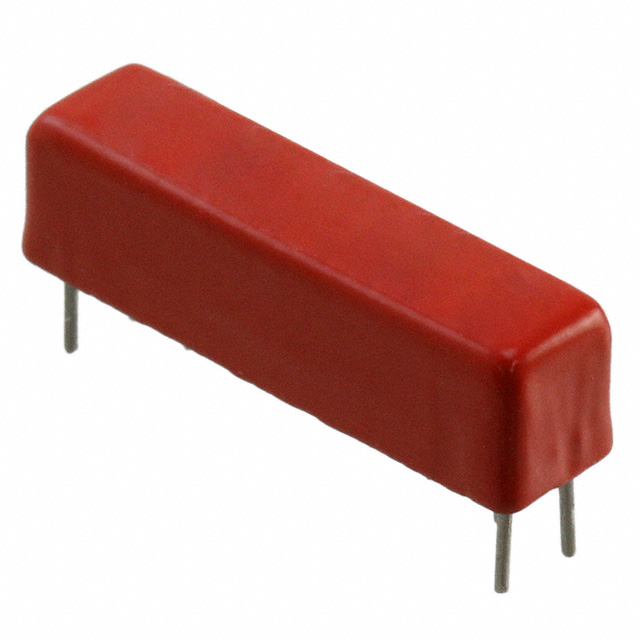

2274-12-021

Share

Or copy the link below:

Mfr.Part #
2274-12-021
Manufacturer
Coto Technology
Package / Case
Datasheet
Download
Description
RELAY REED SPST 500MA 12V
Stock
242
In Stock :
242

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Coto Technology
Product Category :
Reed Relays
Release Time :
0.1ms
Length - Termination :
0.0032 inch
Input Switching Control Type :
Random
Dielectric Strength Between Open Contacts :
200 Vrms
Coil Type :
Non Latching
Contact Rating (Current) :
500mA
Contact Voltage(AC)-Max :
200V
Insulation Resistance :
1000000000000Ohm
Coil/Input Supply Type :
DC
Coil Current :
21.8mA
Seal Rating :
Sealed - Hermetically
Termination Style :
PC Pin
Dielectric Strength Between Coil and Contacts :
1500 Vrms
Coil Resistance :
550Ohm
Operating Temperature :
-20°C~125°C
Published :
2012
JESD-609 Code :
e3
Contact/Output Supply Type :
AC/DC
Contact (DC) Max Power Rating R Load :
10W@200VDC
Must Release Voltage :
1VDC
Contact (AC) Max Rating R Load :
0.5A@200VAC
Operate Time :
0.5ms
Number of Terminations :
8
Terminal Finish :
Matte Tin (Sn)
Throw Configuration :
SPST
Coil Voltage (DC) :
12V
Coil Voltage :
12VDC
Body Length or Diameter :
20.57mm
Switching Voltage :
200VAC 200VDC -Max
Body Breadth :
5.33 mm
Contact Form :
SPST-NO (1 Form A)
Mount :
Through Hole
Series :
2270
PCB Hole Count :
8
Contact Voltage(DC)-Max :
200V
Body Height :
6.23mm
RoHS Status :
ROHS3 Compliant
Mounting Type :
Through Hole
Must Operate Voltage :
6.7VDC
Physical Dimension :
20.57mm x 5.33mm x 6.23mm
Packaging :
Tube
Relay Action :
LATCHED
Contact (DC) Max Rating R Load :
0.5A@200VDC
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Termination :
PC Pin
Relay Type :
Reed
ECCN Code :
EAR99
Factory Lead Time :
22 Weeks
Datasheets
2274-12-021
Introducing Reed Relays Coto Technology 2274-12-021 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-20°C~125°C, Number of Terminations:8, Mounting Type:Through Hole, 2274-12-021 pinout, 2274-12-021 datasheet PDF, 2274-12-021 amp .Beyond Reed Relays Coto Technology 2274-12-021 ,we also offer 8L01-12-001, HE722A1200, 3570-1419-054, Our vast inventory has you covered. Contact us now for immediate solutions.

Coto Technology 2274-12-021


2274-12-021 datasheet pdf and Reed Relays product details from Coto Technology stock available at
