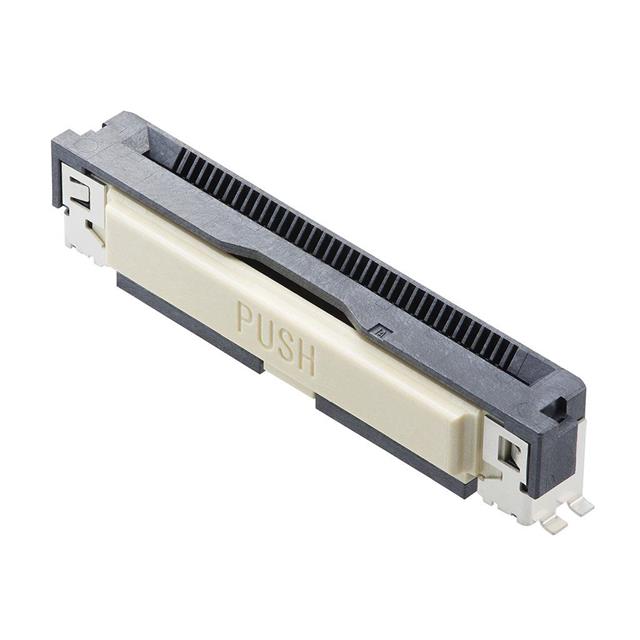

2004850560
Or copy the link below:
- Mfr.Part #
- 2004850560
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- 0.5 ONE-TOUCH ST 60P
- Stock
- 1,783
- In Stock ：
- 1,783
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Contact Material :
- COPPER ALLOY
- Orientation :
- Vertical
- Height Above Board :
- 0.220" (5.59mm)
- Manufacturer :
- Molex
- Subcategory :
- FFC and FPC Connectors
- Product Type :
- FFC and FPC Connectors
- Operating Temperature :
- -40°C ~ 105°C
- Brand :
- Molex
- Voltage Rating :
- 50V
- Mounting Angle :
- Vertical
- FFC, FCB Thickness :
- 0.30mm
- Packaging :
- Cut Tape
- Material :
- COPPER ALLOY
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Actuator Type :
- One-Touch
- Current Rating (Amps) :
- 0.5A
- Features :
- Solder Retention
- Product :
- Connectors
- Material Flammability Rating :
- UL94 V-0
- Tradename :
- Easy-On
- Product Status :
- Active
- Mounting Type :
- Surface Mount
- Actuator Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Pitch :
- 0.020" (0.50mm)
- Wire/Cable Type :
- FFC/FPC
- Termination Style :
- SMD/SMT
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Termination :
- Solder
- RoHS :
- Details
- Package :
- Digi-Reel?
- Flat Flex Type :
- FFC
- Contact Location :
- Side Contact
- Cable End Type :
- Notched
- Locking Feature :
- Auto Lock, Push Button Release
- Actuator Color :
- Natural
- Mounting Style :
- SMD/SMT
- Number of Positions :
- 60
- Mating Cycles :
- 20
- Series :
- Easy-On 200485
- Contact Finish Thickness :
- 3.94µin (0.10µm)
- Product Category :
- FFC and FPC Connectors
- Contact Finish :
- Gold
- Base Product Number :
- 200485
- Housing Color :
- Black
- Datasheets
- 2004850560
2004850560 Documents
Easy-On 200485 Series FFC Contacts, Vertical - 1 Sided Cut Tape 0.020" (0.50mm) Solder 60 Positions Surface Mount Gold -40°C ~ 105°C 0.5A
2004850560 Overview
This device has a Surface Mount mounting type.An orange Cut Tape case is used to package the product.Specifically, it is one of the products in the Easy-On 200485 Series.Devices operate at -40°C ~ 105°C operating temperatures.
2004850560 Features
Easy-On 200485 series
2004850560 Applications
There are a lot of Molex
2004850560 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
