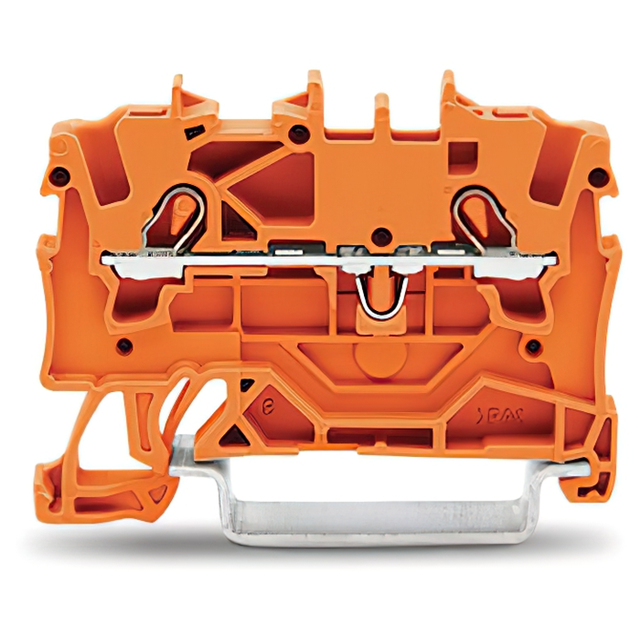

2001-1202

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Height :

48.5

Depth :

32.9

Inflammability class of insulation material according to with UL94 :

V0

Number of Ways :

2

Approvals :

CSA, cURus

Number of Circuits :

1

Voltage - UL :

600V

Number of Positions :

2

Current - IEC :

24 A

Material Flammability Rating :

UL94 V-0

HTS :

8536.90.40.00

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

Connectable conductor cross section multi-wired :

0.25 - 1.5

Current - UL :

15 A

Product Status :

Active

Series :

2001

Package :

Box

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Terminal - Width :

4.2mm

Current Rating :

18A

Termination Method :

Push In

Stripping Length :

9mm ~ 11mm

Packaging :

Box

Type :

Standard Block

Width :

4.2

Voltage - IEC :

800V

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Mounting Type :

DIN Rail

Features :

-

Rated current In :

18

ECCN (US) :

EAR99

Automotive :

No

Color :

Orange

Termination Style :

Push In, Spring

Fuse Type :

-

Wire Size :

22 → 14 AWG

PPAP :

No

Connectable conductor cross section solid-core :

0.5 - 2.5

Length :

48.5

Wire Gauge or Range - AWG :

14-22 AWG

Wire Gauge or Range - mm² :

0.25-2.5mm²

EU RoHS :

Compliant

Disconnect Type :

-

Manufacturer :

Wago

RoHS :

yes

Number of Levels :

1
