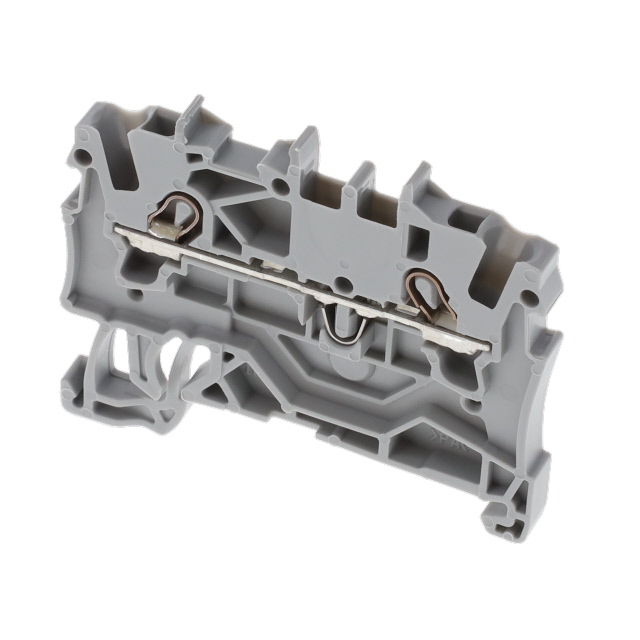

2001-1201

Manufacturer :

WAGO

Product Category :

Din Rail, Channel

Features :

-

Fuse Type :

-

Voltage - IEC :

800V

Approvals :

CSA;UL

Width :

4.20mm

AWG max. :

14

Mounting Type :

DIN Rail

Contact Pitch (mm) :

Not Required(mm)

Number of Contact Rows :

2

Termination Method :

Push-In Cage Clamp

Number of Rows :

1

AWG (min.) :

22

Current Rating :

18 A

Clamp width :

4.20mm

Rad Hardened :

No

Nominal current :

18A

Cross section (inflexible) (min.) :

0.25mm²

Voltage - UL :

600V

Number of Contacts :

2(POS)

Number of Circuits :

1

Mounting Style :

T DIN RAIL

Content :

1pc(s)

Terminal - Width :

4.2mm

Length :

48.5

Current - UL :

15 A

Wire Gauge or Range - mm² :

0.08-2.5mm²

Min. stripping length :

9mm

Wire Gauge or Range - AWG :

14-18 AWG

Configuration :

L

Current Rating (Max) :

17(A)

Product Depth (mm) :

4.2(mm)

Connectable conductor cross section fine-strand without cable end sleeve :

0.25 - 2.5

RoHS :

yes

Weight :

0.04

Rated current In :

18

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Nominal current - rounded value :

18A

Pins per row :

2

Voltage Rating :

800 V

Connectable conductor cross section multi-wired :

0.25 - 1.5

Operating Voltage (Max) :

800V

Cross section (flexible) (max.) :

2.50mm²

Connection :

-

Number of Levels :

1

Nominal current (details) :

18A

Number of Pins :

2

Nominal voltage :

800V

Base Product Number :

2001-120

Number of Positions :

2

Stripping Length :

9mm ~ 11mm

Product Status :

Active

Cross section (inflexible) (max.) :

1.50mm²

No. of rows :

1

Mount :

Through Hole

Wire/Cable Gauge :

22 AWG

Connectable conductor cross section fine-strand with cable end sleeve :

0.75 - 1.5

Rated Current :

18A

Inflammability class of insulation material according to with UL94 :

V0

Contact Plating :

Copper, Tin

Rated Voltage :

800V

Number of Poles :

2

Connectable conductor cross section solid-core :

0.5 - 2.5

Cross section (flexible) (min.) :

0.25mm²

Housing Material :

Polyamide 6/6

Contact Material :

Steel

Wire Gauge :

14-22(AWG)

Lead Free :

Lead Free

Packaging :

Box

Height :

48.5

Manufacturer part # :

2001-1201

Type :

Terminal Block

Material Flammability Rating :

-

Housing Color :

Gray

Depth :

32.9

Disconnect Type :

-

Series :

2001

Product Length (mm) :

48.5(mm)

Flammability Rating :

UL94 V-0

Manufacturer :

Wago

Product Height (mm) :

33(mm)

Termination Style :

Push In, Spring

Stripping length (max.) :

11mm

Current - IEC :

24 A

Package :

Bulk

Color :

Gray
