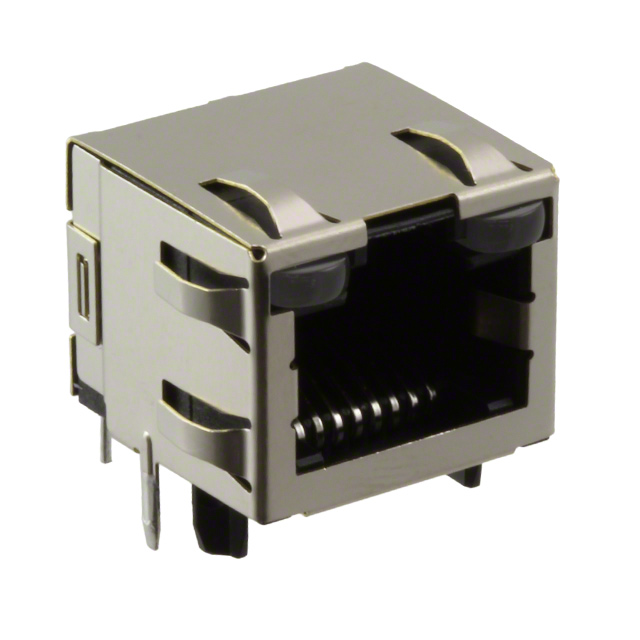

2-406549-8
Or copy the link below:
- Mfr.Part #
- 2-406549-8
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHIELDED
- Stock
- 1,764
- In Stock ：
- 1,764
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Modular Connector Jacks
- RoHS Status :
- RoHS Compliant
- Additional Feature :
- SHEILDED
- PCB Mounting Orientation :
- RIGHT ANGLE
- Max Voltage Rating (AC) :
- 150V
- Current Rating :
- 200mA
- PCB Thickness :
- 1.57mm
- PCB Contact Pattern :
- STAGGERED
- JESD-609 Code :
- e3
- Orientation :
- 90° Angle (Right)
- Option :
- GENERAL PURPOSE
- Number of Ports :
- 1
- Number of Positions Loaded :
- 8
- MIL Conformance :
- No
- Width :
- 17.27mm
- Pitch :
- 2.03mm
- Shell Finish :
- NICKEL TIN
- Filter Feature :
- No
- Reliability :
- COMMERCIAL
- Mixed Contacts :
- No
- Insulation Resistance :
- 500000000Ohm
- Housing Material :
- Thermoplastic
- Mounting Type :
- Through Hole
- IEC Conformance :
- No
- Contact Finish Thickness :
- 50.0μin 1.27μm
- Termination :
- Solder
- DIN Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 1 week ago)
- Ratings :
- Cat5
- Length :
- 17.27mm
- Gender :
- FEMALE
- Published :
- 2011
- Contact Finish :
- Gold
- Empty Shell :
- No
- Color :
- Black
- UL Flammability Code :
- 94V-0
- Depth :
- 15.75mm
- Element Configuration :
- Single
- Shielding :
- Shielded, EMI Finger
- Mount :
- Panel
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Pbfree Code :
- yes
- ELV :
- Compliant
- Feature :
- Board Guide
- Flammability Rating :
- UL94 V-0
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length - Tail :
- 2.54mm
- Keyed :
- No
- Tab Direction :
- UP
- Contact Material :
- Phosphor Bronze
- Total Number of Contacts :
- 8
- Lead Free :
- Lead Free
- Circuit Application :
- Signal
- LED Color :
- Yellow, Green - Yellow, Green
- Connector Type :
- JACK
- Contact Finish Thickness - Mating :
- 380 nm
- Shell Material :
- COPPER-ZINC ALLOY
- Factory Lead Time :
- 25 Weeks
- Height :
- 13.34mm
- Contact Style :
- TELCOM, MODULAR
- Body Breadth :
- 0.55 inch
- Dielectric Withstanding Voltage :
- 900VAC V
- Reference Standard :
- UL, CSA
- Packaging :
- Tray
- Durability :
- 750 Cycles
- Operating Temperature :
- -40°C~85°C
- Datasheets
- 2-406549-8
Jack Tray Shielded, EMI Finger 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole -40°C~85°C
2-406549-8 Overview
The connector type Jack refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Tray case is used.In addition, there are other features such as SHEILDED, to mention only a few.It features 1 ports for managing a variety of tasks.Its Board Guide feature renders it more powerful in many ways.The part is mounted by Panel.The device runs in -40°C~85°C Operating Temperature.
2-406549-8 Features
2-406549-8 Applications
There are a lot of TE Connectivity AMP Connectors
2-406549-8 Modular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
