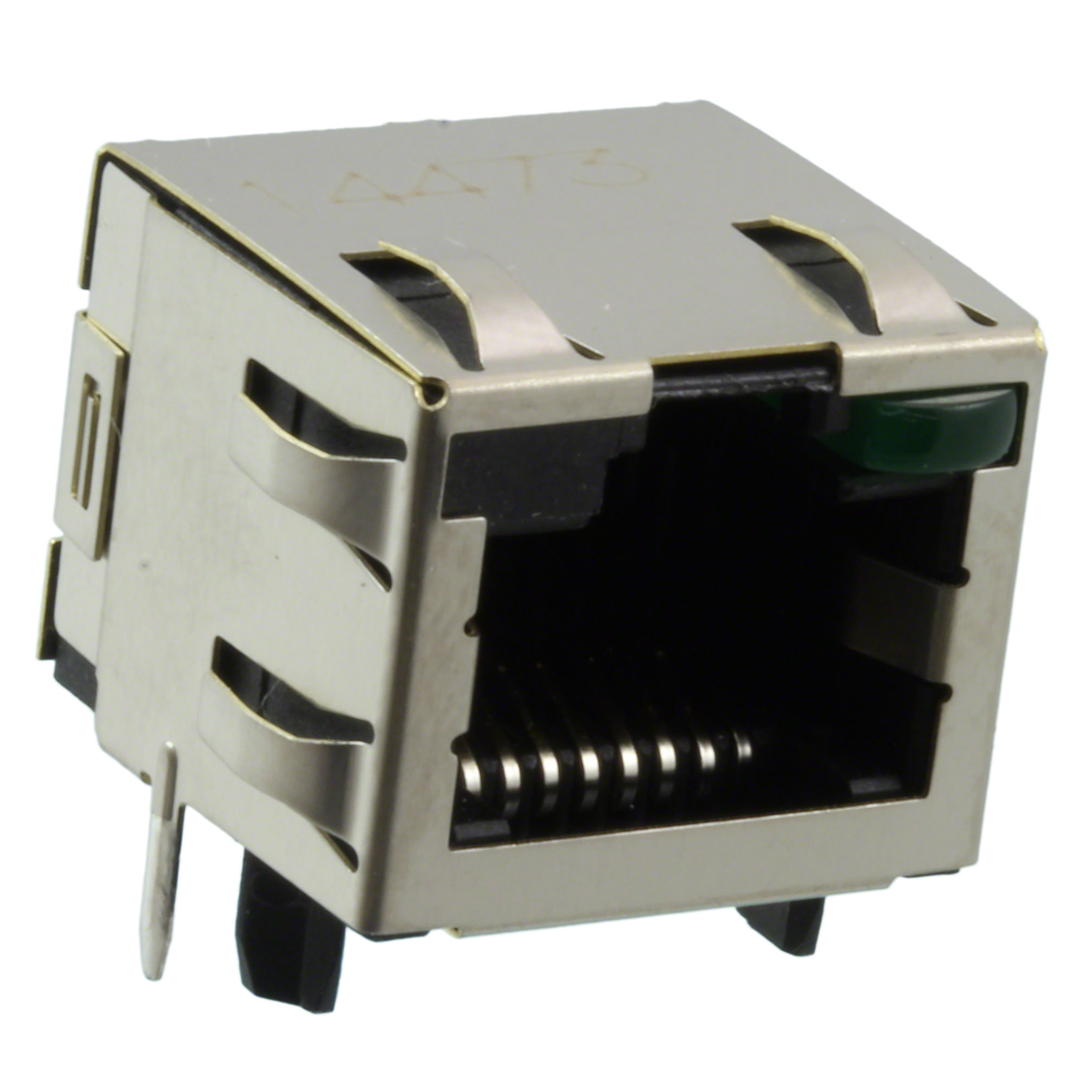

2-406549-2

Share

Or copy the link below:

Mfr.Part #
2-406549-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN MOD JACK 8P8C R/A SHIELDED
Stock
2,179
In Stock :
2,179

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Modular Connector Jacks
Depth :
15.75mm
Element Configuration :
Single
Durability :
750 Cycles
MIL Conformance :
No
Lifecycle Status :
ACTIVE (Last Updated: 2 days ago)
Contact Material :
Phosphor Bronze
UL Flammability Code :
94V-0
Number of Positions Loaded :
8
Filter Feature :
No
Color :
Black
Mounting Type :
Through Hole
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Keyed :
No
ELV :
Compliant
DIN Conformance :
No
Flammability Rating :
UL94 V-0
Shell Material :
COPPER-ZINC ALLOY
Contact Finish Thickness :
50.0μin 1.27μm
IEC Conformance :
No
Height :
13.34mm
RoHS Status :
RoHS Compliant
Operating Temperature :
-40°C~85°C
Reference Standard :
UL, CSA
Contact Gender :
FEMALE
Number of Ports :
1
Contact Finish :
Gold
Orientation :
90° Angle (Right)
Length :
17.27mm
Tab Direction :
UP
Current Rating :
200mA
Total Number of Contacts :
8
Shell Finish :
NICKEL TIN
Option :
GENERAL PURPOSE
Mount :
Panel
Contact Style :
TELCOM, MODULAR
Length - Tail :
2.54mm
Pitch :
2.03mm
Ratings :
Cat5
Lead Free :
Lead Free
Mixed Contacts :
No
Connector Type :
JACK
Termination :
Solder
Reliability :
COMMERCIAL
Housing Material :
Thermoplastic
Packaging :
Tray
Shielding :
Shielded, EMI Finger
Empty Shell :
No
LED Color :
Green
Pbfree Code :
yes
Published :
2011
PCB Contact Pattern :
STAGGERED
Body Breadth :
0.55 inch
Circuit Application :
Signal
Dielectric Withstanding Voltage :
900VAC V
Max Voltage Rating (AC) :
150V
Insulation Resistance :
500000000Ohm
Contact Finish Thickness - Mating :
380 nm
Factory Lead Time :
25 Weeks
Additional Feature :
SHEILDED
JESD-609 Code :
e3
PCB Mounting Orientation :
RIGHT ANGLE
PCB Thickness :
1.57mm
Feature :
Board Guide
Number of Positions/Contacts :
8p8c (RJ45, Ethernet)
Datasheets
2-406549-2
Introducing Modular Connector Jacks TE Connectivity AMP Connectors 2-406549-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-40°C~85°C, 2-406549-2 pinout, 2-406549-2 datasheet PDF, 2-406549-2 amp .Beyond Modular Connector Jacks TE Connectivity AMP Connectors 2-406549-2 ,we also offer 0955016669, E5J88-00LJG2-L, SS-6488-NF, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 2-406549-2


Jack Tray Shielded, EMI Finger 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole -40°C~85°C

2-406549-2 Overview


A Jack package is included with it.Through Hole indicates that the device is mounted.An Tray case is utilized for packaging the product.Furthermore, there are other features such as SHEILDED, to name a few.With 1 ports, it is capable of managing a wide range of tasks.In many ways, Board Guide makes it more powerful.By Panel, the part is mounted.Operating temperature is set to -40°C~85°C.

2-406549-2 Features




2-406549-2 Applications


There are a lot of TE Connectivity AMP Connectors
2-406549-2 Modular Connectors applications.


  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
