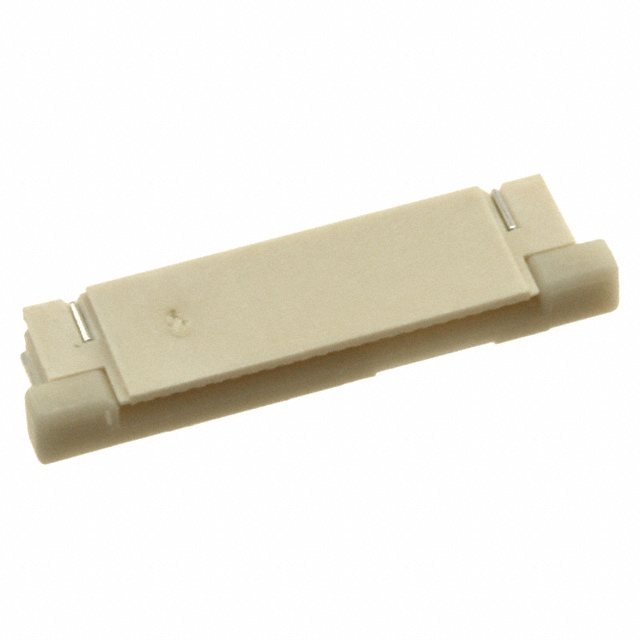

2-1734839-3
Or copy the link below:
- Mfr.Part #
- 2-1734839-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC TOP 23POS 0.50MM R/A
- Stock
- 11,096
- In Stock ：
- 11,096
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- ELV :
- Compliant
- Circuit Application :
- Signal
- Material Flammability Rating :
- UL94 V-0
- Feature :
- Solder Retention, Zero Insertion Force (ZIF)
- Gender :
- Receptacle
- Mounting Type :
- Surface Mount, Right Angle
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 23
- Width :
- 5.1mm
- Sealable :
- No
- Published :
- 2006
- Number of Contacts :
- 23
- Connector/Contact Type :
- Contacts, Top
- Shielding :
- Unshielded
- Flammability Rating :
- UL94 V-0
- PCB Mounting Orientation :
- RIGHT ANGLE
- Operating Supply Voltage :
- 250V
- Locking Feature :
- Slide Lock
- FFC, FCB Thickness :
- 0.30mm
- Orientation :
- RIGHT ANGLE
- Wire/Cable Type :
- Flat Flex
- Max Operating Temperature :
- 85°C
- PCB Mount Alignment :
- Without
- Housing Color :
- Natural
- Plating :
- Gold
- Cable End Type :
- Tapered
- Operating Temperature :
- -20°C~85°C
- Contact Plating :
- Gold
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Min Operating Temperature :
- -40°C
- Contact Current Rating :
- 500mA
- Current Rating :
- 500mA
- Contact Finish Thickness :
- Flash
- Current Rating (Amps) :
- 0.5A
- Actuator Material :
- Thermoplastic
- Height :
- 2.05mm
- Housing Material :
- Thermoplastic
- Depth :
- 5.1mm
- Pitch :
- 0.020 0.50mm
- Actuator Color :
- Ivory
- PCB Mount Retention :
- With
- Height Above Board :
- 0.081 2.05mm
- Number of Rows :
- 1
- Contact Material :
- Phosphor Bronze
- Length :
- 16.93mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Termination :
- Solder
- Connector Type :
- Connector, Receptacle, Socket
- Factory Lead Time :
- 17 Weeks
- Flat Flex Type :
- FPC
- Mount :
- Surface Mount
- Voltage - Rated :
- 250V
- Datasheets
- 2-1734839-3
FPC Contacts, Top Tape & Reel (TR) 0.020 0.50mm Solder 23 Positions Surface Mount, Right Angle Gold -20°C~85°C 0.5A
2-1734839-3 Overview
Packaging is Connector, Receptacle, Socket.This device has a Surface Mount, Right Angle mounting type.An orange Tape & Reel (TR) case is used to package the product.If the temperature is below 85°C, it's best to use it.-40°C is the minimum temperature for this device.Several benefits come from the Solder Retention, Zero Insertion Force (ZIF) feature.There is a mounting hole at Surface Mount.It runs on 250V voltage.Devices operate at -20°C~85°C operating temperatures.
2-1734839-3 Features
2-1734839-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-1734839-3 FFC, FPC (Flat Flexible) Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
