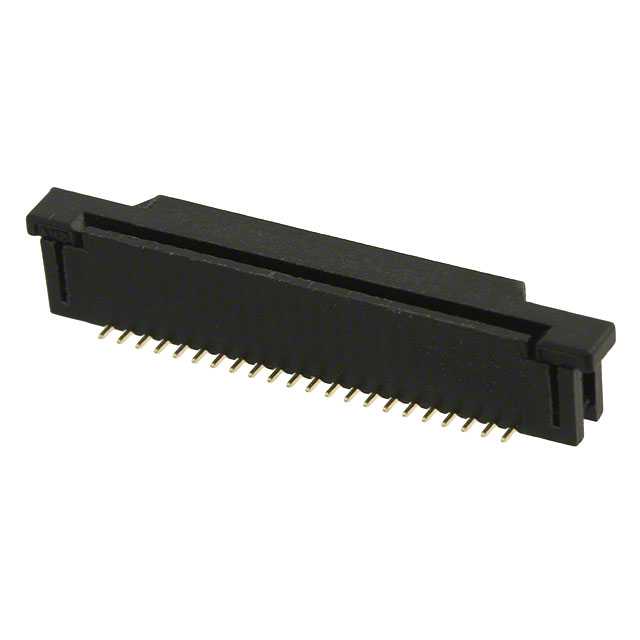

2-1734248-2
Or copy the link below:
- Mfr.Part #
- 2-1734248-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN FPC VERT 22POS 1.00MM SMD
- Stock
- 5,155
- In Stock ：
- 5,155
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- FFC, FPC (Flat Flexible) Connector Assemblies
- Height :
- 7.7mm
- Shielding :
- Unshielded
- Contact Plating :
- Gold
- Cable End Type :
- Tapered
- PCB Mount Retention :
- With
- FFC, FCB Thickness :
- 0.30mm
- PCB Mounting Orientation :
- Vertical
- Contact Finish Thickness :
- Flash
- Contact Finish :
- Gold
- Packaging :
- Tape and Reel (TR)
- Housing Color :
- Black
- Published :
- 2005
- Plating :
- Gold
- Flammability Rating :
- UL94 V-0
- Contact Material :
- Phosphor Bronze
- Depth :
- 4.6mm
- Housing Material :
- Polyamide (PA9T), Nylon 9T
- ELV :
- Compliant
- Actuator Color :
- Black
- Radiation Hardening :
- No
- Feature :
- Zero Insertion Force (ZIF)
- Height Above Board :
- 0.217 5.50mm
- Connector Type :
- Connector, Receptacle, Socket
- Number of Contacts :
- 22
- Pitch :
- 0.039 1.00mm
- Factory Lead Time :
- 12 Weeks
- Width :
- 4.6mm
- Mounting Type :
- Surface Mount
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Wire/Cable Type :
- Flat Flex
- Mount :
- Surface Mount
- Voltage - Rated :
- 125V
- Contact Current Rating :
- 1A
- Operating Temperature :
- -20°C~85°C
- Max Operating Temperature :
- 185°C
- Current Rating :
- 1A
- Sealable :
- No
- Current Rating (Amps) :
- 1A
- Number of Positions :
- 22
- Gender :
- Receptacle
- RoHS Status :
- RoHS Compliant
- Actuator Material :
- Polyamide (PA9T), Nylon 9T
- Locking Feature :
- Slide Lock
- Material Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -4°C
- REACH SVHC :
- Unknown
- Orientation :
- Vertical
- Number of Rows :
- 1
- Circuit Application :
- Signal
- PCB Mount Alignment :
- Without
- Flat Flex Type :
- FPC
- Connector/Contact Type :
- Contacts, Vertical - 1 Sided
- Termination :
- Solder
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Length :
- 29.4mm
- Datasheets
- 2-1734248-2
FPC Contacts, Vertical - 1 Sided Tape & Reel (TR) 0.039 1.00mm Solder 22 Positions Surface Mount Gold -20°C~85°C 1A
2-1734248-2 Overview
The product comes in a package of Connector, Receptacle, Socket.Its mounting type is Surface Mount.Packaging is performed using a Tape & Reel (TR) case.Whenever it's below 185°C, it's best to use it.The device must operate at a temperature of -4°C at all times.A number of features make it more powerful because of its Zero Insertion Force (ZIF) feature.Surface Mount mounts the part.There is no operating temperature for the device.
2-1734248-2 Features
2-1734248-2 Applications
There are a lot of TE Connectivity AMP Connectors
2-1734248-2 FFC, FPC (Flat Flexible) Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
