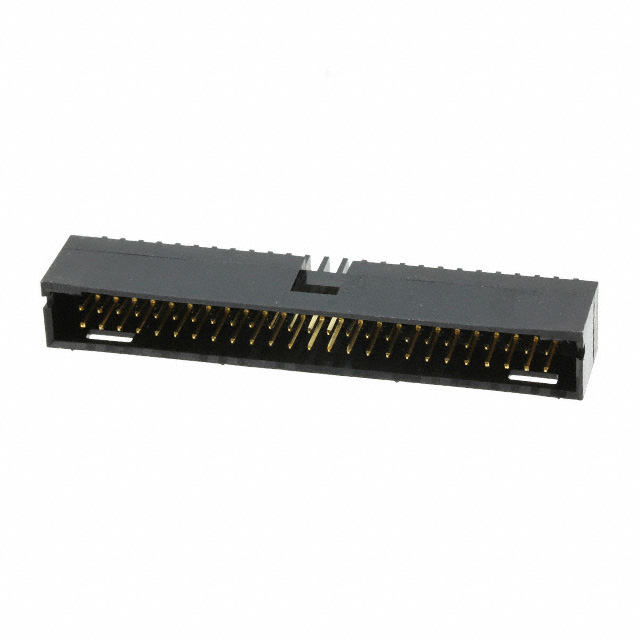

2-103167-2
Or copy the link below:
- Mfr.Part #
- 2-103167-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 50POS 2.54MM
- Stock
- 40,372
- In Stock ：
- 40,372
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Number of Positions :
- 50
- Plating Thickness :
- 30μin
- Shrouding :
- Shrouded - 4 Wall
- ECCN Code :
- EAR99
- Reliability :
- COMMERCIAL
- RoHS Status :
- Non-RoHS Compliant
- Style :
- Board to Board or Cable
- Fastening Type :
- Detent Lock
- Length :
- 70.61mm
- Contact Length - Post :
- 0.135 3.43mm
- Contact Material :
- Phosphor Bronze
- Approval Agency :
- CSA
- Termination :
- Solder
- Housing Color :
- Black
- Insulation Material :
- Thermoplastic
- Contact Current Rating :
- 3A
- HTS Code :
- 8536.69.40.40
- Operating Temperature :
- -65°C~105°C
- Body Breadth :
- 0.413 inch
- IEC Conformance :
- No
- Reference Standard :
- UL
- PCB Thickness :
- 1.397mm
- PCB Contact Pattern :
- RECTANGULAR
- PCB Mounting Orientation :
- RIGHT ANGLE
- Insulation Height :
- 0.400 10.16mm
- Number of Rows :
- 2
- Contact Shape :
- Square
- Number Of PCB Rows :
- 2
- Connector Type :
- Header
- UL Flammability Code :
- 94V-0
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- MIL Conformance :
- No
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Lead Length :
- 3.429mm
- Factory Lead Time :
- 21 Weeks
- Mating Contact Pitch :
- 0.1 inch
- Orientation :
- RIGHT ANGLE
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Contact Type :
- Male Pin
- Number of Positions Loaded :
- All
- Rated Current (Signal) :
- 3A
- Published :
- 2006
- Filter Feature :
- No
- Contact Finish - Post :
- Tin-Lead
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Packaging :
- Tray
- DIN Conformance :
- No
- Mount :
- Through Hole
- Current Rating :
- 3A
- Pitch - Mating :
- 0.100 2.54mm
- Depth :
- 16.23mm
- Mating Post Length :
- 8.08mm
- ELV :
- Non-Compliant
- Contact Finish - Mating :
- Gold
- Series :
- AMPMODU Mod II
- Contact Length - Mating :
- 0.318 8.08mm
- Material Flammability Rating :
- UL94 V-0
- Mixed Contacts :
- No
- Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Lead Free :
- Contains Lead
- High Speed Serial Data Connector :
- No
- JESD-609 Code :
- e0
- Contact Gender :
- Male
- Mounting Type :
- Through Hole, Right Angle
- Number of Conductors :
- ONE
- Insulation Resistance :
- 5GOhm
- Shrouded End Dimension :
- 3.81 mm
- Datasheets
- 2-103167-2
AMPMODU Mod II Series 2-Row Header Solder Phosphor Bronze Tray Through Hole, Right Angle Gold Thermoplastic 50-Position Board to Board or Cable 0.400 10.16mm Height
2-103167-2 Overview
It comes in a Header package.Through Hole, Right Angle is the mounting type of the device.We pack the product in a Tray case.This is from the AMPMODU Mod II Series.This part is mounted by Through Hole. -65°C~105°C Operating Temperature is the default.
2-103167-2 Features
AMPMODU Mod II series
2-103167-2 Applications
There are a lot of TE Connectivity AMP Connectors
2-103167-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
