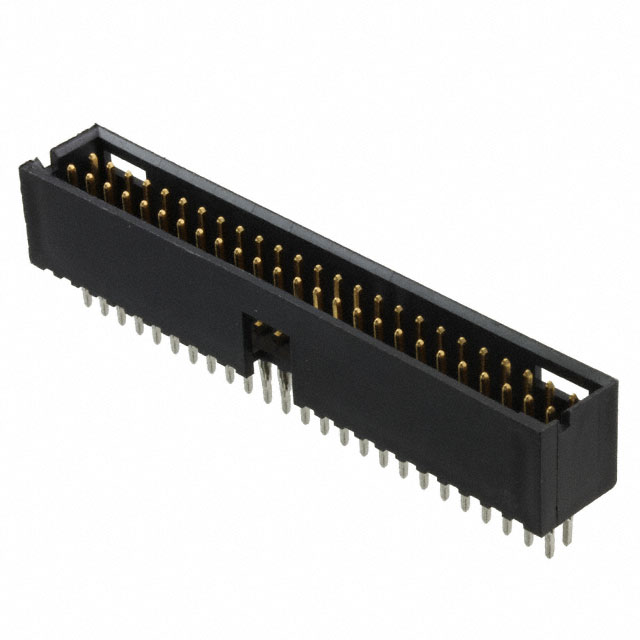

2-102699-3
Or copy the link below:
- Mfr.Part #
- 2-102699-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 50POS 2.54MM
- Stock
- 178
- In Stock ：
- 178
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- RoHS Status :
- Non-RoHS Compliant
- Contact Gender :
- Male
- Overall Contact Length :
- 0.660 16.76mm
- Factory Lead Time :
- 12 Weeks
- ECCN Code :
- EAR99
- Shrouded End Dimension :
- 1.68 mm
- Style :
- Board to Board or Cable
- Contact Length - Mating :
- 0.320 8.13mm
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Contact Material :
- COPPER ALLOY
- MIL Conformance :
- No
- UL Flammability Code :
- 94V-0
- Published :
- 2011
- Housing Color :
- Black
- Series :
- AMPMODU Mod II
- Insulation Height :
- 0.440 11.18mm
- ELV :
- Non-Compliant
- High Speed Serial Data Connector :
- No
- Connector Type :
- Header
- Insulation Resistance :
- 5GOhm
- PCB Thickness :
- 3.18mm
- Lead Free :
- Contains Lead
- Fastening Type :
- Detent Lock
- Number of Positions :
- 50
- Pbfree Code :
- yes
- IEC Conformance :
- No
- Insulation Material :
- Thermoplastic
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish - Mating :
- Gold
- Termination :
- Press-Fit, Solder
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Packaging :
- Tray
- Current Rating :
- 3A
- Mount :
- Through Hole
- High Temperature Housing :
- yes
- DIN Conformance :
- No
- Contact Length - Post :
- 0.250 6.35mm
- Filter Feature :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Current Rating :
- 3A
- Lead Length :
- 6.35mm
- Mating Post Length :
- 8.128mm
- Contact Finish - Post :
- Tin-Lead
- Mixed Contacts :
- No
- Contact Type :
- Male Pin
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Shrouding :
- Shrouded - 4 Wall
- Number of Positions Loaded :
- All
- Row Spacing - Mating :
- 0.100 (2.54mm)
- Contact Shape :
- Square
- HTS Code :
- 8536.69.40.40
- Option :
- GENERAL PURPOSE
- Orientation :
- Vertical
- Approval Agency :
- CSA
- Operating Temperature :
- -55°C~105°C
- Pitch - Mating :
- 0.100 2.54mm
- Contact Finish Thickness - Post :
- 100.0μin 2.54μm
- Datasheets
- 2-102699-3
AMPMODU Mod II Series 2-Row Header Press-Fit, Solder Copper Alloy Tray Through Hole Gold Thermoplastic 50-Position Board to Board or Cable 0.440 11.18mm Height
2-102699-3 Overview
A Header package is included with it.Its mounting type is Through Hole.Packaging is performed using a Tray case.It is part of the AMPMODU Mod II Series of products.Through Hole mounts the part.There is no operating temperature for the device.
2-102699-3 Features
AMPMODU Mod II series
2-102699-3 Applications
There are a lot of TE Connectivity AMP Connectors
2-102699-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
