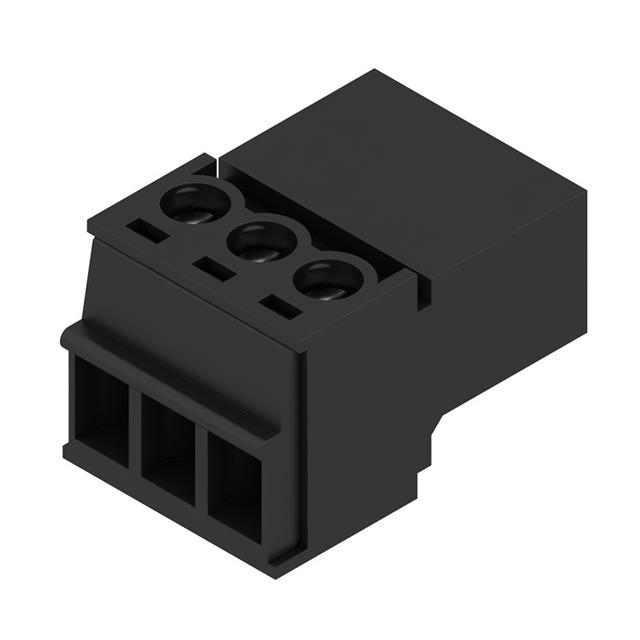

1970020000
Or copy the link below:
- Mfr.Part #
- 1970020000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 3POS STR 3.81MM
- Stock
- 47,447
- In Stock ：
- 47,447
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Plug Wire Entry :
- 180°
- Packaging :
- Bulk
- Housing Material :
- Polyamide (PA), Nylon, Glass Filled
- Insulation Material :
- Nylon
- Number of Positions :
- 3
- Torque - Screw :
- 0.2-0.25 Nm (1.7-2.2 Lb-In)
- Screw Size :
- M2
- Operating Temperature :
- -50°C~120°C
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Stripping Length :
- 7mm
- Published :
- 2011
- ECCN Code :
- EAR99
- Flammability Rating :
- UL94 V-0
- Current Rating :
- 17.1A
- Contact Mating Finish :
- Tin
- Wire Strip Length :
- 7mm
- Number of Decks :
- 1
- Approval Agency :
- CSA, cURus
- Series :
- Omnimate SC
- Wire Gauge or Range - mm² :
- 0.2-1.5mm2
- Color :
- Black
- Material Flammability Rating :
- UL94 V-0
- Voltage - IEC :
- 320V
- Pitch :
- 0.150 3.81mm
- Factory Lead Time :
- 12 Weeks
- Ingress Protection :
- IP20
- Wire Gauge or Range - AWG :
- 16-28 AWG
- RoHS Status :
- RoHS Compliant
- Voltage - Rated :
- 300V
- Termination Style :
- Screw - Clamping Yoke (Tension Sleeve)
- Current - IEC :
- 17.5A
- Current - UL :
- 10A
- Insulation Height :
- 0.437 11.10mm
- Type :
- Plug, Male Pins
- Mounting Type :
- Free Hanging (In-Line)
- Number of Ways :
- 3
- Number of Levels :
- 1
- Contact Material :
- COPPER ALLOY
- Number of Rows :
- 1
- Datasheets
- 1970020000
Bulk 0.150 3.81mm Black 1 Levels Free Hanging (In-Line) Plug, Male Pins Omnimate SC Polyamide (PA), Nylon, Glass Filled Tin Copper Alloy
1970020000 Overview
Free Hanging (In-Line) indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the Omnimate SC Series.Operating temperature is set to -50°C~120°C.It is a part that shares many benefits with other products from the Plug, Male Pins line.
1970020000 Features
Omnimate SC series
1970020000 Applications
There are a lot of Weidmüller
1970020000 Terminal Blocks applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
