Mfr.Part #
1970000000
Manufacturer
Weidmuller
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 8POS STR 3.81MM
Stock
12,463
In Stock :
12,463

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Weidmuller
Product Category :
Headers, Plugs and Sockets
Termination Style :
Screwless - Leg Spring, Push-In Spring
Number of Poles :
8
Ingress Protection :
IP20
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Approval Agency :
CSA, cURus
Plug Wire Entry :
180°
Insulation Height :
0.311 7.90mm
Voltage - IEC :
320V
Mounting Type :
Free Hanging (In-Line)
Housing Material :
Polyamide (PA66), Nylon 6/6, Glass Filled
Color :
Black
Number of Decks :
1
Number of Rows :
1
Wire Strip Length :
9mm
Material Flammability Rating :
UL94 V-0
Contact Mating Finish :
Tin
Insulation Material :
Nylon
Flammability Rating :
UL94 V-0
Operating Temperature :
-50°C~120°C
Number of Ways :
8
Series :
Omnimate BC
Type :
Plug, Female Sockets
Wire Gauge or Range - AWG :
16-26 AWG
RoHS Status :
RoHS Compliant
Current - UL :
10A
Wire Gauge or Range - mm² :
0.14-1.5mm2
Feature :
Push Button Actuated
Published :
2007
Pitch :
0.150 3.81mm
Factory Lead Time :
12 Weeks
Packaging :
Bulk
Stripping Length :
8mm
Contact Material :
COPPER ALLOY
Number of Positions :
8
ECCN Code :
EAR99
Current Rating :
17.5A
Voltage - Rated :
300V
Number of Levels :
1
REACH SVHC :
No SVHC
Wire/Cable Gauge :
26 AWG
Datasheets
1970000000
Introducing Headers, Plugs and Sockets Weidmuller 1970000000 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Free Hanging (In-Line), Operating Temperature:-50°C~120°C, Type:Plug, Female Sockets, 1970000000 pinout, 1970000000 datasheet PDF, 1970000000 amp .Beyond Headers, Plugs and Sockets Weidmuller 1970000000 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

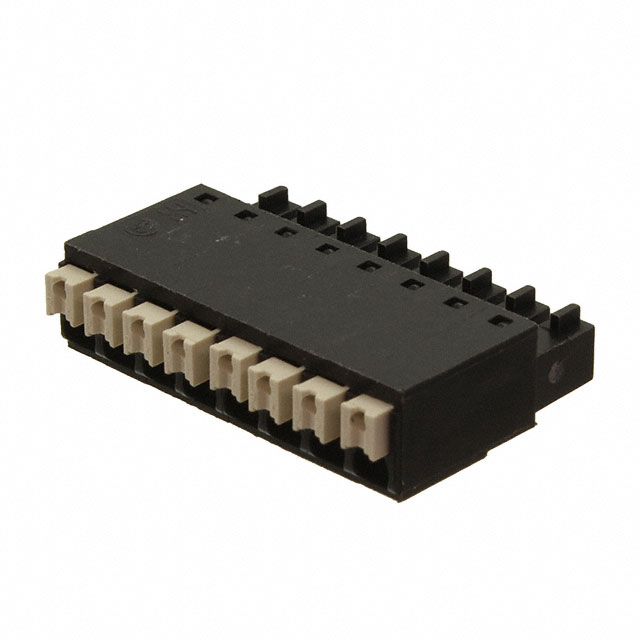

Weidmuller 1970000000


Bulk 0.150 3.81mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BC Polyamide (PA66), Nylon 6/6, Glass Filled Tin Copper Alloy

1970000000 Overview


The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the Omnimate BC Series of products.Its Push Button Actuated feature renders it more powerful in many ways.The device runs in -50°C~120°C Operating Temperature.This part shares lots of benefits with other Plug, Female Sockets products.

1970000000 Features


Omnimate BC series


1970000000 Applications


There are a lot of Weidmüller
1970000000 Terminal Blocks applications.


  • Industrial Automation
  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
