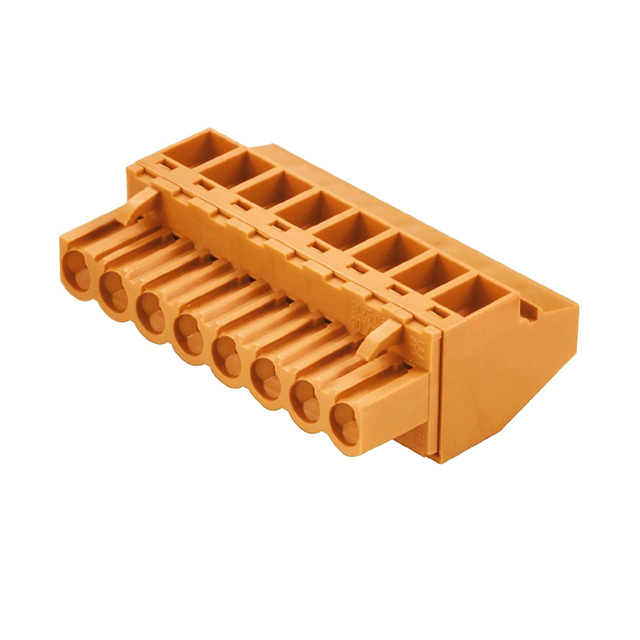

1948060000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Wire Gauge (Max) :

26 AWG

REACH SVHC :

No SVHC

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Number of Decks :

1

Series :

Omnimate BL

Voltage - Rated :

300V

Insulation Height :

0.555 14.10mm

Wire Cross Section :

4 mm2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Stripping Length :

7mm

Feature :

Retention Latches (Wire Side)

Contact Mating Finish :

Tin

Voltage - IEC :

400V

Mount :

Free Hanging

Type :

Plug, Female Sockets

Number of Levels :

1

Number of Positions Per Level :

8

Torque - Screw :

0.4-0.5 Nm (3.5-4.4 Lb-In)

Wire Gauge or Range - mm² :

0.2-4mm2

Operating Temperature :

-50°C~100°C

RoHS Status :

RoHS Compliant

Material Flammability Rating :

UL94 V-0

Pitch :

0.200 5.08mm

Number of Ways :

8

Housing Material :

Polybutylene Terephthalate (PBT)

Screw Size :

M2.5

Published :

2008

Mounting Type :

Free Hanging (In-Line)

Current - IEC :

23A

Packaging :

Bulk

Wire/Cable Gauge :

26 AWG

Safety Approval :

UL; CSA

Current :

10A

Number of Rows :

1

Termination :

Screw

Contact Material :

COPPER ALLOY

Voltage :

300V

Approval Agency :

CSA, UR

Wire Gauge or Range - AWG :

12-30 AWG

Current - UL :

20A

Plug Wire Entry :

90°

Flammability Rating :

UL94 V-0

Wire Gauge (Min) :

12 AWG

Additional Feature :

STANDARD: UL 94V-0

ECCN Code :

EAR99

Color :

Orange

Current Rating :

13A

Factory Lead Time :

6 Weeks
