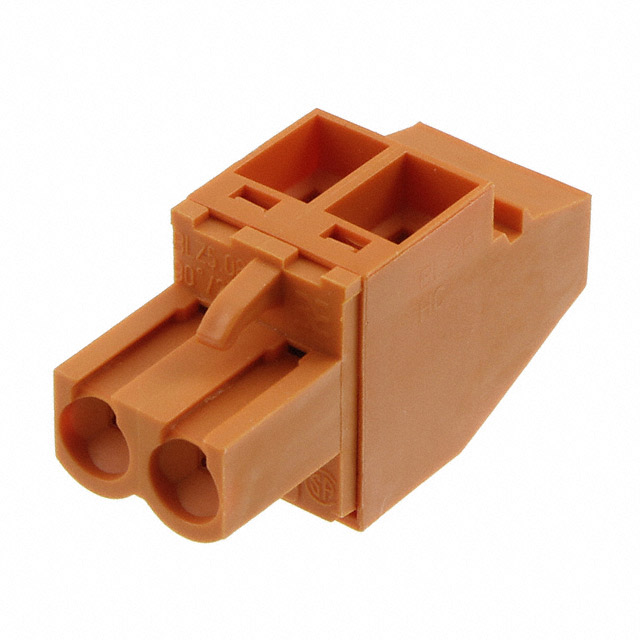

1948000000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Housing Material :

Polybutylene Terephthalate (PBT)

Factory Lead Time :

16 Weeks

Termination :

Screw

Voltage :

300V

Current - UL :

20A

Current Rating :

13A

Pitch :

0.200 5.08mm

Flammability Rating :

UL94 V-0

Number of Decks :

1

REACH SVHC :

No SVHC

Wire Gauge or Range - mm² :

0.2-4mm2

Wire Gauge or Range - AWG :

12-30 AWG

Contact Mating Finish :

Tin

Published :

2008

Orientation :

RIGHT ANGLE

Wire Gauge (Min) :

12 AWG

Plug Wire Entry :

90°

Contact Material :

COPPER ALLOY

Operating Temperature :

-50°C~100°C

Color :

Orange

Wire/Cable Gauge :

26 AWG

Current :

10A

Packaging :

Bulk

Number of Levels :

1

Mount :

Cable, Free Hanging

Number of Ways :

2

Wire Gauge (Max) :

26 AWG

Termination Style :

Screw - Clamping Yoke (Tension Sleeve)

Voltage - IEC :

400V

Type :

Plug, Female Sockets

Stripping Length :

7mm

Safety Approval :

UL; CSA

Insulation Height :

0.555 14.10mm

Current - IEC :

23A

Radiation Hardening :

No

Feature :

Retention Latches (Wire Side)

ECCN Code :

EAR99

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Additional Feature :

STANDARD: UL 94V-0

Approval Agency :

CSA, UR

Number of Rows :

1

HTS Code :

8536.69.40.40

Torque - Screw :

0.4-0.5 Nm (3.5-4.4 Lb-In)

Mounting Type :

Free Hanging (In-Line)

Material Flammability Rating :

UL94 V-0

Number of Contacts :

2

Voltage - Rated :

300V

RoHS Status :

RoHS Compliant

Screw Size :

M2.5

Series :

Omnimate BL
