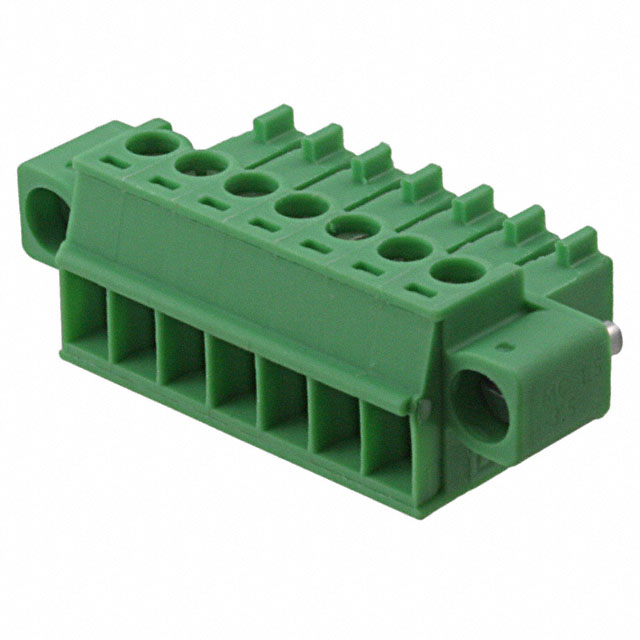

1847107

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Housing Material :

Polyamide (PA), Nylon

Voltage - IEC :

320V

Packaging :

Bulk

Screw Size :

M2

Length :

11.1mm

Mounting Type :

Free Hanging (In-Line)

Insulation Height :

0.437 11.10mm

Connector Type :

Screw, Socket

RoHS Status :

RoHS Compliant

Pitch :

0.138 3.50mm

HTS Code :

8536.69.40.40

Number of Decks :

1

Pbfree Code :

yes

Type :

Plug, Female Sockets

Wire Strip Length :

7mm

Weight :

98.999993g

ECCN Code :

EAR99

Material Flammability Rating :

UL94 V-0

Flammability Rating :

UL94 V-0

Voltage :

300V

Voltage - Rated :

160V

Contact Plating :

Tin

Wire Gauge or Range - AWG :

14-30 AWG

Safety Approval :

UL

Height :

16.1mm

Termination Style :

Screw - Rising Cage Clamp

Factory Lead Time :

11 Weeks

Published :

2011

Plug Wire Entry :

180°

Width :

34.8mm

Number of Rows :

1

Torque - Screw :

0.22-0.25 Nm (1.9-2.2 Lb-In)

Number of Levels :

1

Current Rating :

8A

Mount :

Free Hanging

Wire Gauge (Min) :

14 AWG

Wire Gauge or Range - mm² :

0.14-1.5mm2

Current :

8A

Additional Feature :

PA, UL 94V-0

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Positions :

7

Series :

COMBICON MC

Wire Gauge (Max) :

30 AWG

Color :

Green

Feature :

Mating Flange

Number of Ways :

7

Termination :

Screw
