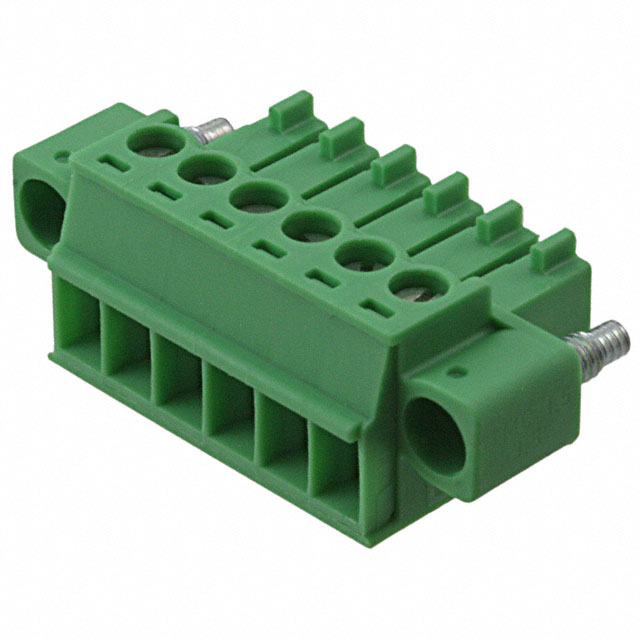

1847097

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Termination Style :

Screw - Rising Cage Clamp

Current :

8A

Orientation :

RIGHT ANGLE

Mount :

Free Hanging, Panel

Voltage - IEC :

320V

Plug Wire Entry :

180°

Weight :

98.999993g

Length :

11.1mm

Number of Rows :

1

Safety Approval :

UL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Contacts :

6

Published :

2011

Type :

Plug, Female Sockets

Wire Gauge (Min) :

14 AWG

Termination :

Screw

Lead Free :

Lead Free

Color :

Green

Wire Strip Length :

7mm

Flammability Rating :

UL94 V-0

Material Flammability Rating :

UL94 V-0

Wire Gauge (Max) :

30 AWG

Voltage :

300V

ECCN Code :

EAR99

Factory Lead Time :

6 Weeks

Wire Gauge or Range - AWG :

14-30 AWG

Voltage - Rated :

160V

Pitch :

0.138 3.50mm

Height :

16.1mm

Number of Ways :

6

Mounting Type :

Free Hanging (In-Line)

Wire Gauge or Range - mm² :

0.14-1.5mm2

Pbfree Code :

yes

Contact Mating Finish :

Tin

Additional Feature :

PA, UL 94V-0

RoHS Status :

RoHS Compliant

Number of Decks :

1

Width :

31.3mm

Torque - Screw :

0.22-0.25 Nm (1.9-2.2 Lb-In)

Current Rating :

8A

Series :

COMBICON MC

Connector Type :

Screw, Socket

Number of Levels :

1

Screw Size :

M2

Packaging :

Bulk

Feature :

Mating Flange

Contact Material :

Copper

Max Current Rating :

8A

Insulation Height :

0.437 11.10mm

Housing Material :

Polyamide (PA), Nylon
