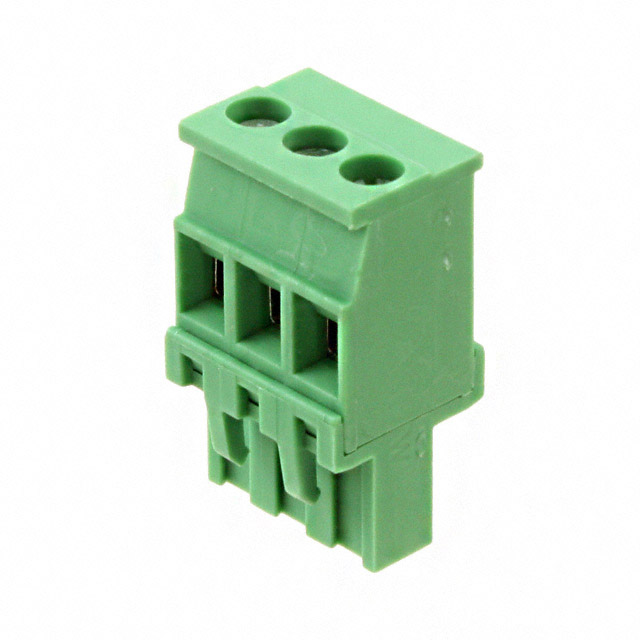

1792029

Manufacturer :

Phoenix Contact

Product Category :

Headers, Plugs and Sockets

Number of Decks :

1

Number of Contacts :

3

Material :

Polyamide

Material Flammability Rating :

UL94 V-0

Gender :

FEMALE

Orientation :

Straight

Number of Ways :

3

Wire Gauge or Range - AWG :

12-30 AWG

Radiation Hardening :

No

Factory Lead Time :

7 Weeks

Lead Free :

Lead Free

Current Rating :

12A

Number of Levels :

1

Approval Agency :

CB, CSA, UL, VDE, cULus

Depth :

12.6mm

Max Supply Voltage :

250V

Screw Size :

M3

Series :

COMBICON MVSTBR

Insulation Height :

1.024 26.01mm

Color :

Green

Voltage - IEC :

630V

Mounting Type :

Free Hanging (In-Line)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge or Range - mm² :

0.2-2.5mm2

Voltage - Rated :

250V

Weight :

1.59982kg

Contact Plating :

Tin

Mount :

Cable, Free Hanging

ECCN Code :

EAR99

Flammability Rating :

UL94 V-0

Termination :

Screw

Wire Gauge (Min) :

24 AWG

Type :

Plug, Female Sockets

Torque - Screw :

0.5-0.6 Nm (4.4-5.3 Lb-In)

RoHS Status :

RoHS Compliant

Plug Wire Entry :

90°

Wire Cross Section :

2.5 mm2

Published :

2010

Termination Style :

Screw - Rising Cage Clamp

Max Current Rating :

12A

Housing Material :

Polyamide (PA), Nylon

Voltage :

300V

Width :

12.6mm

Number of Rows :

1

Wire Gauge (Max) :

12 AWG

Stripping Length :

7mm

Current :

15A

Pitch :

0.197 5.00mm

Safety Approval :

UL

Connector Type :

Screw, Socket

Insulation Material :

Nylon

Additional Feature :

PA, 94V-0

Pbfree Code :

yes

Feature :

Retention Latches (Wire Side)

Packaging :

Bulk

Height :

16mm

Length :

15mm
