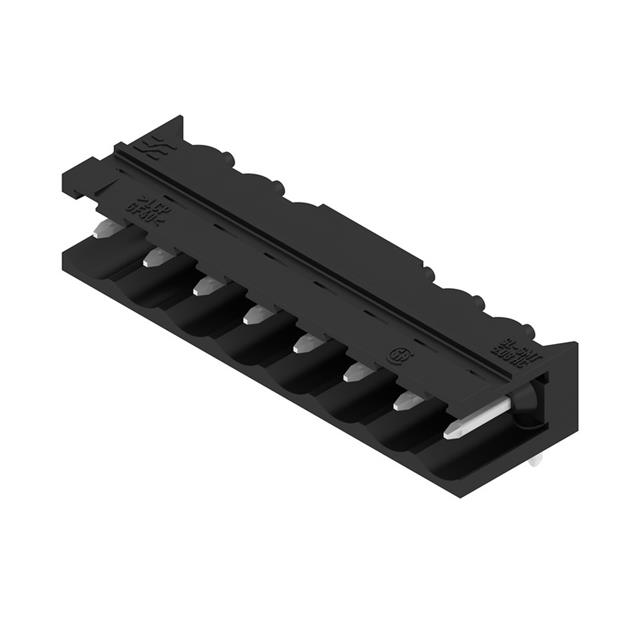

1780010000
Or copy the link below:
- Mfr.Part #
- 1780010000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 8POS 90DEG 5.08MM
- Stock
- 29,751
- In Stock ：
- 29,751
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Pbfree Code :
- yes
- Contact Mating Finish :
- Tin
- Option :
- GENERAL PURPOSE
- Mounting Type :
- Through Hole
- Voltage - Rated :
- 300V
- Material Flammability Rating :
- UL94 V-0
- UL Flammability Code :
- 94V-0
- Current - UL :
- 18.5A
- Series :
- Omnimate SL
- DIN Conformance :
- No
- Termination Style :
- Solder
- Hole Diameter :
- 1.4 mm
- Contact Material :
- COPPER ALLOY
- Number of Levels :
- 1
- IEC Conformance :
- No
- Current Rating :
- 15A
- Published :
- 2011
- Total Number of Contacts :
- 8
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Factory Lead Time :
- 12 Weeks
- Insulation Height :
- 0.335 8.51mm
- Header Orientation :
- 90°, Right Angle
- Gender :
- Male
- Mount :
- Through Hole
- RoHS Status :
- RoHS Compliant
- Mixed Contacts :
- No
- Current - IEC :
- 27.5A
- Filter Feature :
- No
- Flammability Rating :
- UL94 V-0
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- REACH SVHC :
- No SVHC
- Radiation Hardening :
- No
- Voltage - IEC :
- 400V
- Color :
- Black
- Number of Rows :
- 1
- Operating Temperature :
- -50°C~100°C
- Number of Poles :
- 8
- Termination :
- Through Hole
- Packaging :
- Bulk
- Contact Tail Length :
- 0.126 3.20mm
- Approval Agency :
- CSA, UR
- Pitch :
- 0.200 5.08mm
- Datasheets
- 1780010000
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Omnimate SL Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy
1780010000 Overview
Through Hole is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Omnimate SL Series, it can be found in this category.In this case, Through Hole mounts the part.The device is operating at -50°C~100°C Operating Temperature.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (2 Side) products.
1780010000 Features
Omnimate SL series
1780010000 Applications
There are a lot of Weidmüller
1780010000 Terminal Blocks applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
