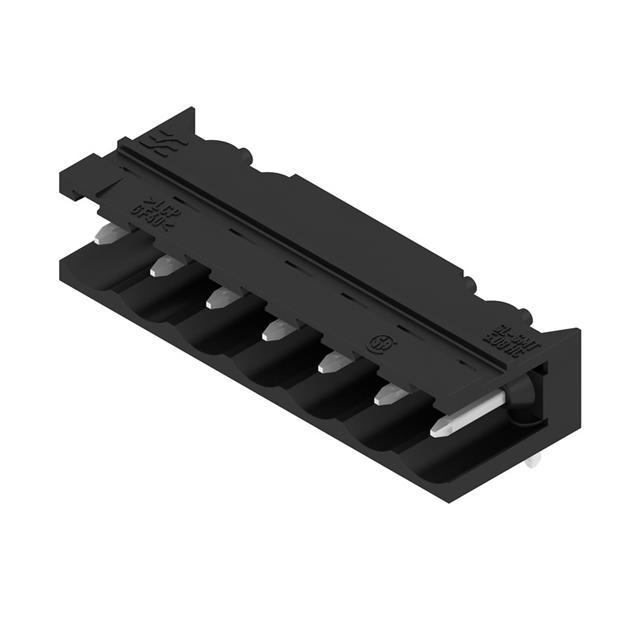

1780000000
Or copy the link below:
- Mfr.Part #
- 1780000000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK HDR 7POS 90DEG 5.08MM
- Stock
- 2,318
- In Stock ：
- 2,318
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Current - UL :
- 18.5A
- Termination Style :
- Solder
- Mount :
- Through Hole
- Published :
- 2008
- Mixed Contacts :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Voltage - Rated :
- 300V
- Insulation Height :
- 0.335 8.51mm
- RoHS Status :
- RoHS Compliant
- MIL Conformance :
- No
- Approval Agency :
- CSA, UR
- Contact Mating Finish :
- Tin
- Color :
- Black
- Radiation Hardening :
- No
- REACH SVHC :
- No SVHC
- Mounting Type :
- Through Hole
- Number of Rows :
- 1
- DIN Conformance :
- No
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -50°C~100°C
- Number of Poles :
- 7
- Housing Material :
- Liquid Crystal Polymer (LCP), Glass Filled
- Option :
- GENERAL PURPOSE
- Total Number of Contacts :
- 7
- Series :
- Omnimate SL
- Gender :
- Male
- Packaging :
- Bulk
- Type :
- Header, Male Pins, Shrouded (2 Side)
- Header Orientation :
- 90°, Right Angle
- Contact Material :
- COPPER ALLOY
- Factory Lead Time :
- 12 Weeks
- Voltage - UL :
- 300V
- Filter Feature :
- No
- Flammability Rating :
- UL94 V-0
- Contact Tail Length :
- 0.126 3.20mm
- Pitch :
- 0.200 5.08mm
- Voltage - IEC :
- 400V
- UL Flammability Code :
- 94V-0
- IEC Conformance :
- No
- Current Rating :
- 15A
- Current - IEC :
- 27.5A
- Hole Diameter :
- 1.4 mm
- Number of Levels :
- 1
- Datasheets
- 1780000000
Bulk 0.200 5.08mm Black 1 Levels Through Hole Header, Male Pins, Shrouded (2 Side) Omnimate SL Liquid Crystal Polymer (LCP), Glass Filled Tin Copper Alloy
1780000000 Overview
Its mounting type is Through Hole.Packaging is performed using a Bulk case.It is part of the Omnimate SL Series of products.Through Hole mounts the part.There is no operating temperature for the device.Several of the benefits of this part are also shared by other Header, Male Pins, Shrouded (2 Side) products.
1780000000 Features
Omnimate SL series
1780000000 Applications
There are a lot of Weidmüller
1780000000 Terminal Blocks applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
