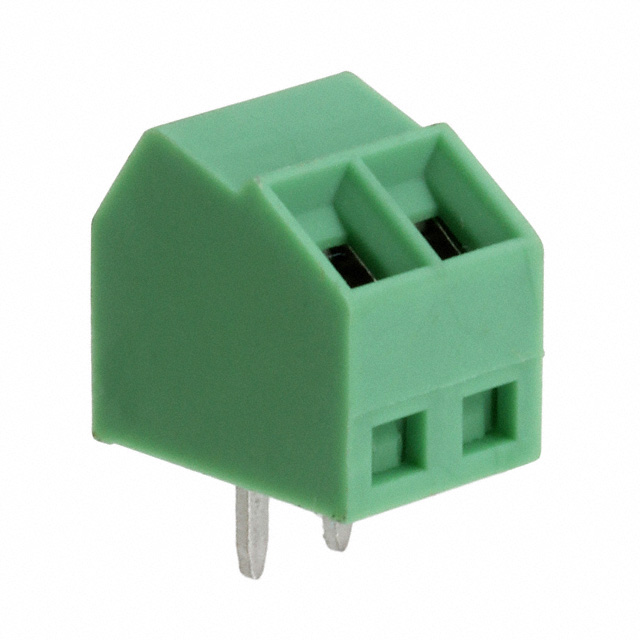

1751099

Share

Or copy the link below:

Mfr.Part #
1751099
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK 2POS 55DEG 3.5MM PCB
Stock
2,690
In Stock :
2,690

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Wire to Board
Flammability Rating :
UL94 V-0
Length :
7.5mm
RoHS Status :
RoHS Compliant
Connector Type :
Screw
Voltage - Rated :
200V
Current Rating :
10A
Number of Contacts :
2
Housing Material :
Polyamide (PA), Nylon
Published :
2011
Packaging :
Bulk
Wire Termination :
Screw - Rising Cage Clamp
Number of Rows :
1
ECCN Code :
EAR99
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Wire Gauge :
16-30 AWG
Factory Lead Time :
4 Weeks
Max Current Rating :
12A
Mount :
Through Hole
Weight :
1.295998g
Voltage :
300V
Color :
Green
Termination :
Solder
Pbfree Code :
yes
Pitch :
0.138 3.50mm
HTS Code :
8536.69.40.40
Torque - Screw :
0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways :
2
Series :
COMBICON SMKDS
Safety Approval :
UL
Additional Feature :
PA, UL 94V-0
Screw Thread :
M2
Max Supply Voltage :
160V
Number of Decks :
1
Mounting Type :
Through Hole
Wire Gauge (Min) :
16 AWG
Depth :
10mm
Wire Gauge (Max) :
30 AWG
Number of Levels :
1
Terminal and Terminal Block Type :
BARRIER STRIP TERMINAL BLOCK
Mating Orientation :
55° (125°) Angle with Board
Lead Free :
Lead Free
Datasheets
1751099
Introducing Wire to Board Phoenix Contact 1751099 from Chip IC,where excellence meets affordability. This product stands out with its Voltage:300V, Mounting Type:Through Hole, 1751099 pinout, 1751099 datasheet PDF, 1751099 amp .Beyond Wire to Board Phoenix Contact 1751099 ,we also offer 1985218, 1984989, 1706714, Our vast inventory has you covered. Contact us now for immediate solutions.

Phoenix Contact 1751099


0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 55° (125°) Angle with Board Screw - Rising Cage Clamp 1 Levels 16-30 AWG COMBICON SMKDS

1751099 Overview


Packaging for this item is Screw.There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON SMKDS Series.Moreover, there are a number of other features, including PA, UL 94V-0, to name just a few.Through Hole is used to mount the part.It is recommended that the supply voltage of this chip not exceed 160V.

1751099 Features


COMBICON SMKDS series


1751099 Applications


There are a lot of Phoenix Contact
1751099 Terminal Blocks applications.


  • Transportation
  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
