Mfr.Part #
1751086
Manufacturer
Phoenix Contact
Package / Case
Datasheet
Download
Description
TERM BLOCK PLUG 4POS STR 5MM
Stock
320
In Stock :
320

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Phoenix Contact
Product Category :
Headers, Plugs and Sockets
Termination Style :
Screw - Rising Cage Clamp
Screw Size :
M3
Number of Ways :
4
Number of Poles :
4
Number of Decks :
1
Pitch :
0.197 5.00mm
Voltage :
300V
Wire Gauge or Range - mm² :
0.2-2.5mm2
Feature :
Positions Stamped, Retention Latches (Non-Wire Side)
Type :
Plug, Female Sockets
Packaging :
Bulk
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Safety Approval :
UL; VDE; CSA
Wire Gauge or Range - AWG :
12-30 AWG
Housing Material :
Polyamide (PA), Nylon
Termination :
Screw
Factory Lead Time :
6 Weeks
Contact Plating :
Tin
Weight :
1.999889kg
Max Current Rating :
12A
Material :
Polyamide
Insulation Height :
0.591 15.00mm
Current :
15A
Height :
18.2mm
Orientation :
RIGHT ANGLE
Voltage - Rated :
250V
Mount :
Cable, Free Hanging, Plug-In
Voltage - IEC :
630V
Gender :
FEMALE
Published :
2009
Width :
15mm
Connector Type :
Screw, Socket
Wire Gauge (Max) :
30 AWG
Material Flammability Rating :
UL94 V-0
RoHS Status :
RoHS Compliant
Current Rating :
12A
Series :
COMBICON MSTB
Wire Gauge (Min) :
12 AWG
Mounting Type :
Free Hanging (In-Line)
Length :
15mm
Number of Levels :
1
Color :
Green
Stripping Length :
7mm
Number of Rows :
1
Torque - Screw :
0.5-0.6 Nm (4.4-5.3 Lb-In)
Pbfree Code :
yes
Reach Compliance Code :
Unknown
Plug Wire Entry :
180°
Number of Positions :
4
ECCN Code :
EAR99
Datasheets
1751086
Introducing Headers, Plugs and Sockets Phoenix Contact 1751086 from Chip IC,where excellence meets affordability. This product stands out with its Voltage:300V, Type:Plug, Female Sockets, Mounting Type:Free Hanging (In-Line), 1751086 pinout, 1751086 datasheet PDF, 1751086 amp .Beyond Headers, Plugs and Sockets Phoenix Contact 1751086 ,we also offer 1984028, TJ0211530000G, 1945151, Our vast inventory has you covered. Contact us now for immediate solutions.

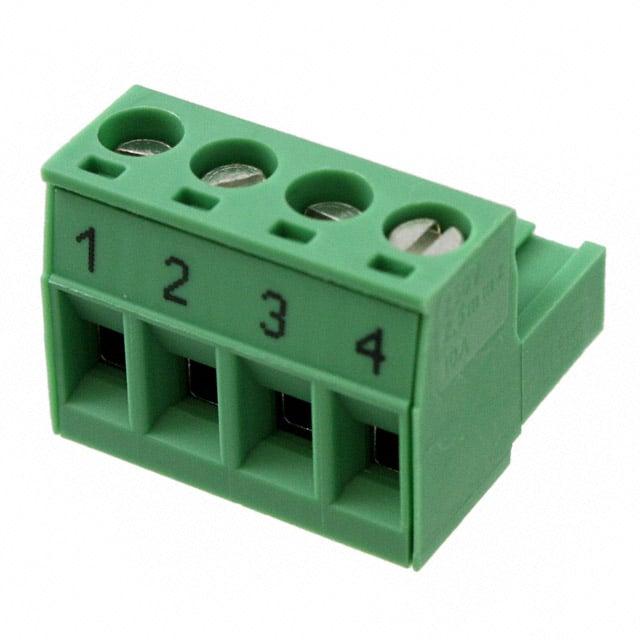

Phoenix Contact 1751086


Bulk 0.197 5.00mm Green 1 Levels Free Hanging (In-Line) Plug, Female Sockets COMBICON MSTB Polyamide (PA), Nylon

1751086 Overview


Screw, Socket packaging is included.This device has a mounting type of Free Hanging (In-Line).We package the product with a Bulk case.The product is part of the COMBICON MSTB Series.This feature makes it more powerful in a number of ways due to its Positions Stamped, Retention Latches (Non-Wire Side) feature.You've got Cable, Free Hanging, Plug-In mounted on the part.In addition to its benefits, this part also shares many with the other products in the Plug, Female Sockets series.

1751086 Features


COMBICON MSTB series


1751086 Applications


There are a lot of Phoenix Contact
1751086 Terminal Blocks applications.


  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
