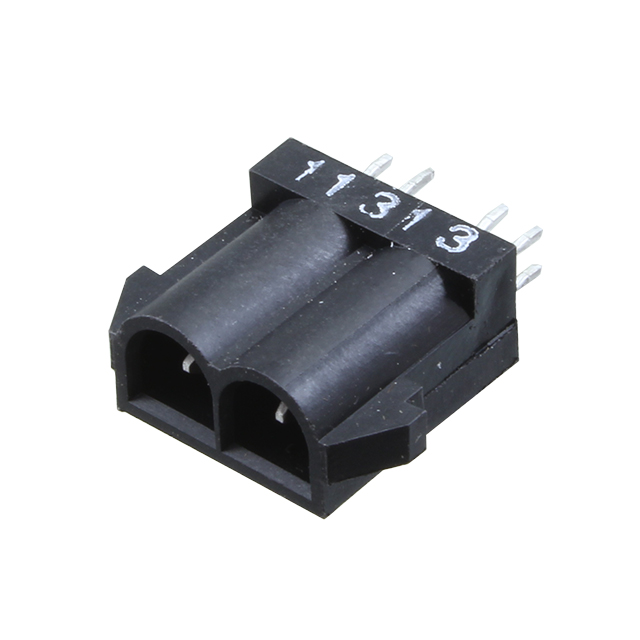

173924-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

Pitch - Mating :

0.250 6.35mm

Style :

Board to Board or Cable

DIN Conformance :

No

ELV :

Compliant

RoHS Status :

RoHS Compliant

Operating Supply Voltage :

500V

JESD-609 Code :

e3

Overall Contact Length :

0.764 19.40mm

UL Flammability Code :

94V-0

Insulation Material :

Thermoplastic, Glass Filled

Contact Length - Post :

0.189 4.80mm

Termination :

Press-Fit, Solder

Height :

15.85mm

MIL Conformance :

No

Max Voltage Rating (AC) :

600V

Contact Gender :

Male

IEC Conformance :

No

Connector Type :

Header

Mounting Type :

Through Hole

Contact Type :

Male Pin

Approval Agency :

CSA

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Circuit Application :

Power

Voltage - Rated :

500VAC

Shell Material :

POLYBUTYLENE TEREPHTHALATE

Mixed Contacts :

No

Depth :

7.6mm

Published :

1999

Sealable :

No

Length :

13.97mm

Additional Feature :

MATE-N-LOK, ACTION PIN

Contact Finish Thickness - Mating :

78.7μin 2.00μm

Housing Material :

Thermoplastic

Contact Retention :

Without

Filter Feature :

No

Current Rating :

19A

Orientation :

Vertical

Shrouding :

Shrouded - 4 Wall

Pbfree Code :

yes

Factory Lead Time :

12 Weeks

Applications :

GENERAL PURPOSE

Plating Thickness :

78.73μm

Contact Finish Thickness - Post :

20.0μin 0.51μm

VDE Tested :

yes

Width :

7.6mm

Contact Current Rating :

15A

Number of Terminations :

2

Contact Material :

COPPER ALLOY

Contact Finish - Mating :

Tin

Fastening Type :

Locking Ramp

Insulation Height :

0.624 15.85mm

Operating Temperature :

-25°C~85°C

Number of Rows :

1

PCB Thickness :

125μm

Series :

Universal MATE-N-LOK

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Material Flammability Rating :

UL94 V-0

Empty Shell :

No

Packaging :

Bulk

Housing Color :

Black

Lead Free :

Not Applicable

Number of Positions Loaded :

All

Mount :

Through Hole

Flammability Rating :

UL94 V-0
