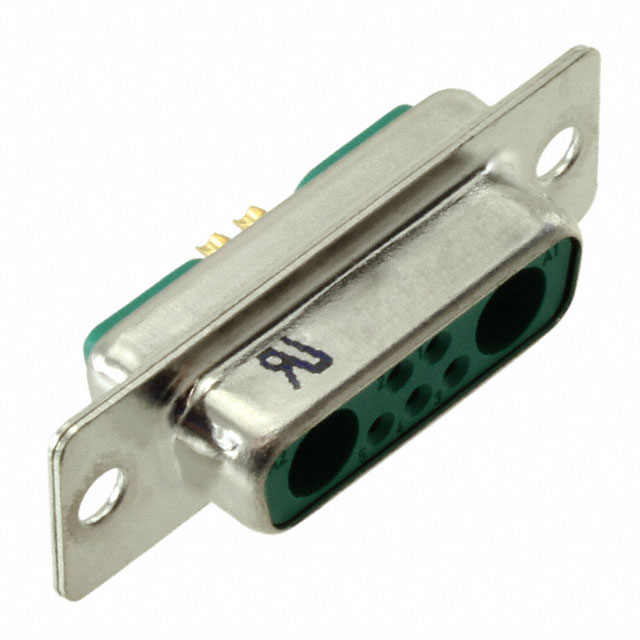

1727040036
Or copy the link below:
- Mfr.Part #
- 1727040036
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN D-SUB RCPT 7POS PNL MNT
- Stock
- 87
- In Stock ：
- 87
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- D-Sub Connector Assemblies
- Termination :
- Solder Cup
- Material Flammability Rating :
- UL94 V-0
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Published :
- 2012
- Series :
- 172704
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Color :
- Green
- Connector Type :
- Receptacle, Female Sockets
- Number of Positions :
- 7 (5 + 2 Coax or Power)
- Mounting Type :
- Panel Mount
- Number of Rows :
- 2
- Contact Type :
- Signal and Coax or Power (Not Included)
- Shell Size, Connector Layout :
- 2 DA A - 7W2
- Wire Gauge :
- 20 AWG
- Factory Lead Time :
- 12 Weeks
- Connector Style :
- D-Sub, Combo
- Operating Temperature :
- -55°C~130°C
- RoHS Status :
- Non-RoHS Compliant
- Flange Feature :
- Housing/Shell (Unthreaded)
- Contact Finish :
- Gold
- Packaging :
- Bulk
- Dielectric Material :
- Polybutylene Terephthalate (PBT)
- Contact Material :
- Brass
- Current Rating (Amps) :
- 5A
- Shell Material, Finish :
- Steel, Tin Plated
- Datasheets
- 1727040036
172704 Series D-Sub, Combo Receptacle, Female Sockets 7 (5 + 2 Coax or Power)-Position Signal and Coax or Power (Not Included) Solder Cup 2 DA A - 7W2 Panel Mount Brass Gold Steel, Tin Plated
1727040036 Overview
It comes in Receptacle, Female Sockets packaging.There is a mounting type of Panel Mount for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the 172704 Series.In this case, the device operates at -55°C~130°C Operating Temperature.
1727040036 Features
172704 series
1727040036 Applications
There are a lot of Molex
1727040036 D-Sub Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
