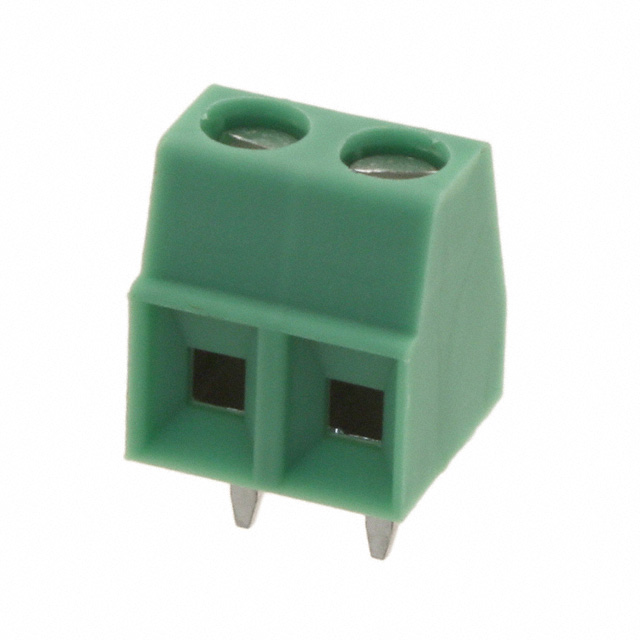

1727010

Manufacturer :

Phoenix Contact

Product Category :

Wire to Board

Mount :

Through Hole

Orientation :

Straight

Safety Approval :

UL

Current Rating :

13.5A

Height :

12mm

Mounting Type :

Through Hole

Packaging :

Bulk

Wire Termination :

Screw - Rising Cage Clamp

Voltage - Rated AC :

160V

Mating Orientation :

Horizontal with Board

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Screw Thread :

M2

Connector Type :

PCB, Screw, Terminal Block

ECCN Code :

EAR99

Insulation Material :

Nylon

Lead Pitch :

3.81mm

Flammability Rating :

UL94 V-0

Max Supply Voltage :

160V

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Max Current Rating :

12A

Number of Contacts :

2

Factory Lead Time :

4 Weeks

Approval Agency :

CSA, UL

HTS Code :

8536.90.40.00

Wire/Cable Gauge :

26 AWG

Number of Levels :

1

Wire Gauge (Min) :

16 AWG

Series :

COMBICON MKDS

Published :

2001

Weight :

1.040002g

Additional Feature :

PA, 94V-0

Number of Decks :

1

Termination :

Solder

Housing Material :

Polyamide (PA), Nylon

Contact Material :

Tin

Number of Ways :

2

Length :

7.3mm

Radiation Hardening :

No

Number of Rows :

1

Wire Gauge :

16-30 AWG

Depth :

7.3mm

RoHS Status :

RoHS Compliant

Color :

Green

Lead Free :

Lead Free

Voltage - Rated :

300V

Wire Gauge (Max) :

26 AWG

REACH SVHC :

No SVHC

Pbfree Code :

yes

Pitch :

0.150 3.81mm

Torque - Screw :

0.22-0.25 Nm (1.9-2.2 Lb-In)

Width :

12mm
