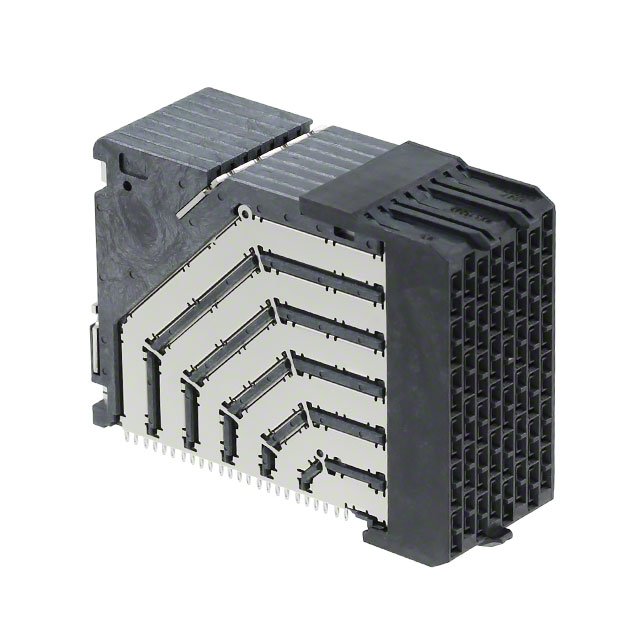

1714001038
Or copy the link below:
- Mfr.Part #
- 1714001038
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT IMPEL PCB
- Stock
- 48
- In Stock ：
- 48
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Specialized
- Number of Positions Loaded :
- All
- Contact Resistance :
- 10MOhm
- Contact Material :
- NOT SPECIFIED
- Connector Style :
- Impel™
- RoHS Status :
- ROHS3 Compliant
- Total Number of Contacts :
- 96
- Series :
- Impel 171400
- ECCN Code :
- EAR99
- Connector Type :
- Receptacle, Female Sockets and Blade Sockets
- PCB Contact Pattern :
- STAGGERED
- JESD-609 Code :
- e3
- Contact Pattern :
- STAGGERED
- Durability :
- 200 Cycles
- Rated Current (Signal) :
- 0.75A
- Factory Lead Time :
- 12 Weeks
- Reliability :
- COMMERCIAL
- Plating Thickness :
- 30μin
- Material Flammability Rating :
- UL94 V-0
- Body Length or Diameter :
- 0.627 inch
- Contact Layout, Typical :
- 48 Differential Pairs
- Pitch :
- 0.075 1.90mm
- Dielectric Withstanding Voltage :
- 500VAC V
- Connector Usage :
- Daughtercard
- Withdrawl Force-Min :
- .14734 N
- Termination :
- Press-Fit
- Mounting Type :
- Through Hole, Right Angle
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Body Breadth :
- 1.209 inch
- Operating Temperature :
- -55°C~85°C
- Color :
- Black
- Packaging :
- Tray
- Contact Finish :
- Gold
- Feature :
- Shielded
- Number of Conductors :
- ONE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Published :
- 2015
- Insulation Material :
- GLASS FILLED LIQUID CRYSTAL POLYMER
- Number of Columns :
- 8
- Insulation Resistance :
- 1000000000Ohm
- Mounting Option 1 :
- LOCKING
- Number of Rows :
- 12
- Voltage - Rated :
- 150V
- Polarization Key :
- POLARIZED HOUSING
- Reference Standard :
- UL
- Length - Termination :
- 0.051 inch
- Datasheets
- 1714001038
1714001038 Documents
Impel 171400 Series Receptacle, Female Sockets and Blade Sockets Press-Fit Gold Black 30.0μin 0.76μm Pitch: 0.075 1.90mm -55°C~85°C Tray Through Hole, Right Angle
1714001038 Overview
The product comes in a package of Receptacle, Female Sockets and Blade Sockets.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tray case is used.The product is a member of the Impel 171400 Series.It is more powerful in many ways due to its Shielded feature.It operates at an operating temperature of -55°C~85°C.
1714001038 Features
Impel 171400 series
1714001038 Applications
There are a lot of Molex
1714001038 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
